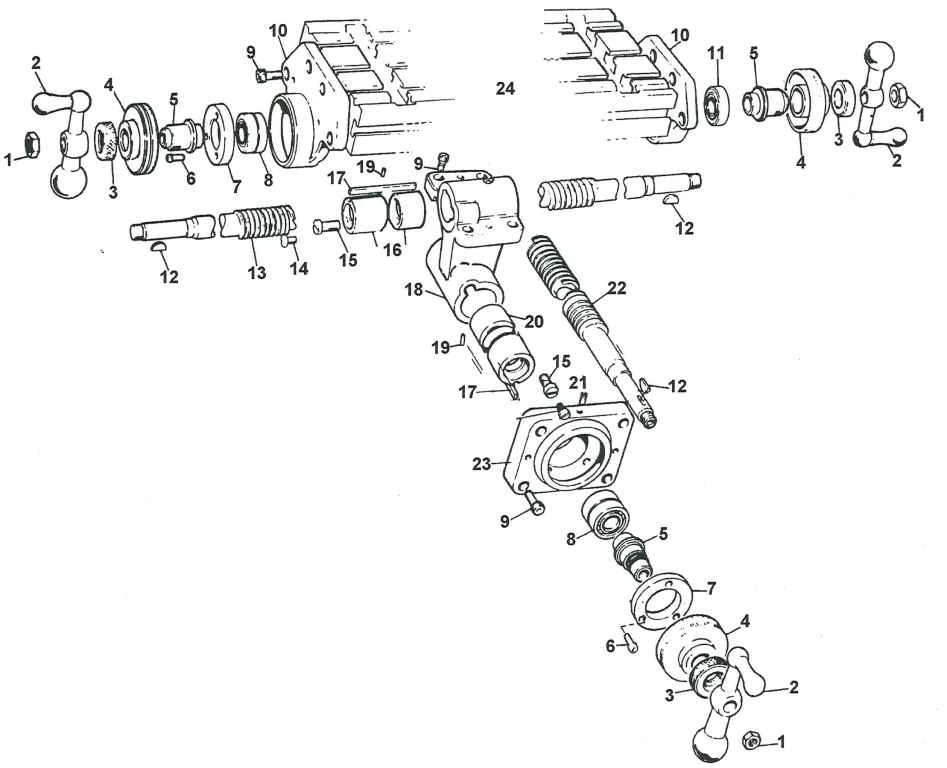

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
This diagram is interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part, and the part number, or if the part is obsolete.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 1166 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1166 |
| 2 | 1167 | Bridgeport Ball Crank Handle | Bridgeport Ball Crank Handle | 1167 |
| 3 | 1168 | Bridgeport Dial Lock Nut | Bridgeport Dial Lock Nut | 1168 |
| 4 | 1169 | Bridgeport Dial with 200 Graduations | Bridgeport Dial with 200 Graduations | 1169 |
| 5 | 1170 | Bridgeport Dial Holder | Bridgeport Dial Holder | 1170 |
| 6 | 1171 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1171 |
| 7 | 1172 | Bridgeport Bearing Retainer Ring | Bridgeport Bearing Retainer Ring | 1172 |
| 8 | 1173 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1173 |
| 9 | 1173 |
Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1173 |
| 10 | 1177 | Bridgeport Table Bearing Bracket | Bridgeport Table Bearing Bracket | 1177 |
| 11 | 1178 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1178 |
| 12 | 1179 | Bridgeport Key | Bridgeport Ball Bearing | 1178 |
| 13 | 1098 | Bridgeport Longitudinal Feed Screws | Bridgeport Longitudinal Feed Screws | 1098 |
| 14 | 1150 | Bridgeport Washer Head Screw | Bridgeport Washer Head Screw | 1150 |
| 15 | 1110 | Bridgeport Feed Nut Retaining Screw | Bridgeport Feed Nut Retaining Screw | 1110 |
| 16 | 1069 | Bridgeport Longitudinal Feed Nut | Bridgeport Longitudinal Feed Nut | 1069 |
| 17 | 1180 | Bridgeport Key | Bridgeport Key | 1180 |
| 18 | 1182 | Bridgeport Feed Nut Bracket w/Keys | Bridgeport Feed Nut Bracket w/Keys | 1182 |
| 19 | 1183 | Bridgeport Key Pin | Bridgeport Key Pin | 1183 |
| 20 | 1070 | Bridgeport Cross Feed Nut | Bridgeport Cross Feed Nut | 1070 |
| 21 | 1371 | Bridgeport Clutch Ring Pin | Bijur Compression Bushing | B1371 |
| 22 | 1073 | Bridgeport Cross Feed Screw | Bridgeport Cross Feed Screw | 1073 |
| 23 | 1185 | Bridgeport Cross Feed Bearing Bracket | Bridgeport Cross Feed Bearing Bracket | 1185 |
| 24 | 1202 | Bridgeport Longitudinal Table | Bridgeport Longitudinal Table | 1202 |
| Part Number | Part Name | Part Link |
|---|---|---|
| WSV61 | Bridgeport Rolled Ballscrew Sets | Bridgeport Rolled Ballscrew Sets |
| 1174 | Bridgeport Dowell Pin | Bridgeport Dowell Pin | 1174 |
| 12746140 | Bridgeport Safety Handle, Spring Loaded | Bridgeport Safety Handle, Spring Loaded | 12746140 |
| 29976-SP | Bridgeport Safety Handle, Standard | Bridgeport Safety Handle, Standard | 29976-SP |
| RBK-XYN | Rebuild Kit for Bridgeport X and Y Axis Nut Assembly | Rebuild Kit for Bridgeport X and Y Axis Nut Assembly | RBK-XYN |
| BRM-J | Guide to Renovating the Bridgeport “J” Head Machine | Guide to Renovating the Bridgeport “J” Head Machine | BRM-J |
| BRM-2J | Guide to Renovating the Bridgeport “2J” Head Machine | Guide to Renovating the Bridgeport “2J” Head Machine | BRM-2J |
| BRM-1 | Bridgeport Series I Operators Manual | Bridgeport Series I Operators Manual | BRM-1 |
| 12PB20 | Push N Lube Pump for Zerk Base | Push N Lube Pump for Zerk Base | 12PB20 |
| RBK-XYL | Bridgeport Zerk Lubrication Kit for X and Y Screws |
Bridgeport Zerk Lubrication Kit for X and Y Screws | RBK-XYL |
| Way Oil | Way Oil | Way Oil |
