Quill Housing and Pinion Shaft Assembly 4 HP – Breakout Page

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.

All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.

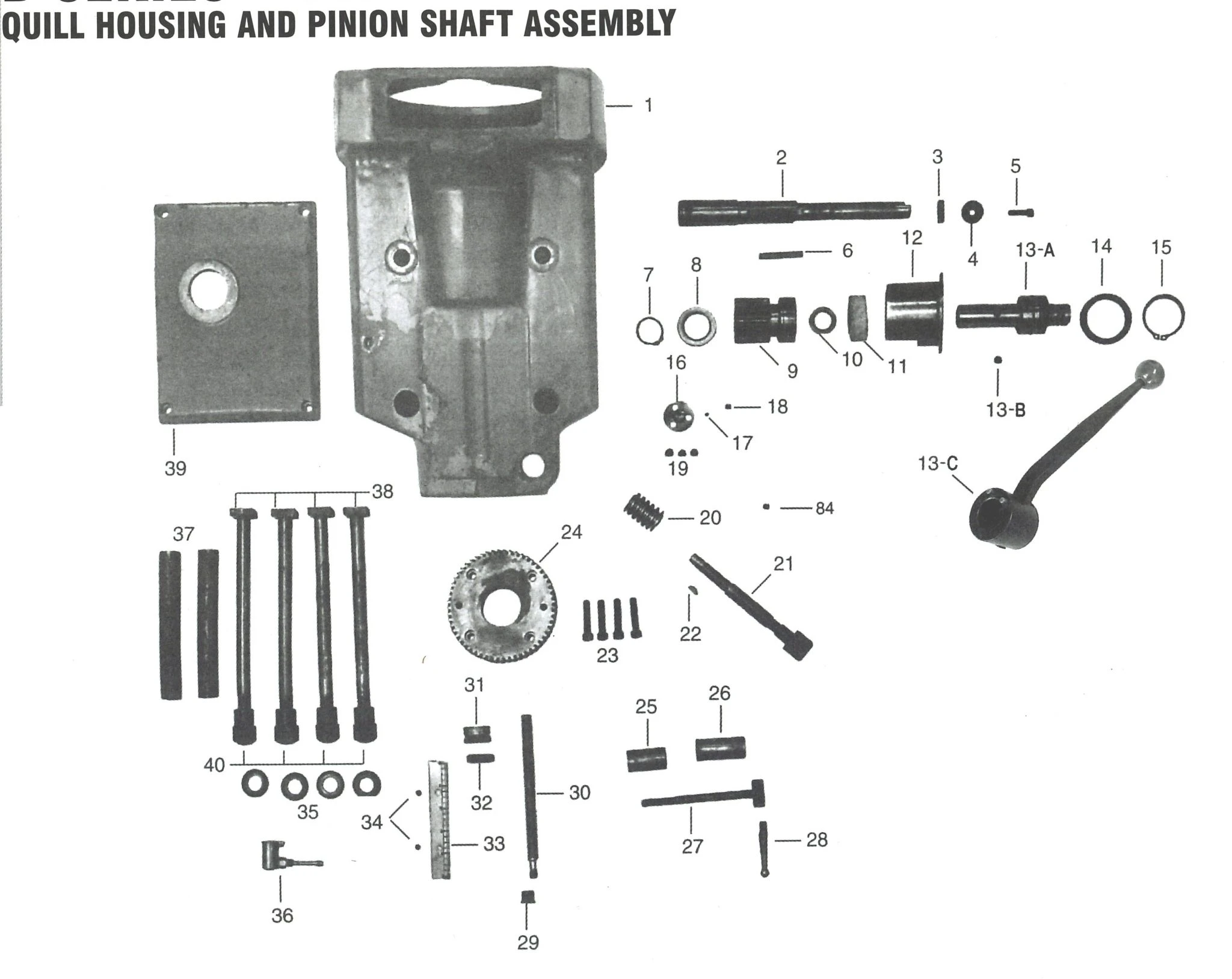

QUILL HOUSING AND PINION SHAFT ASSEMBLY 4 HP BREAKDOWN

Quill Housing and Pinion Shaft Assembly 4 HP Breakdown

Quill Housing and Pinion Shaft Assembly 4 HP Breakdown
037-0662 – Quill Housing 037-0663 – Pinion Gear Shaft (hand feed) 037-0664 – Return Spring Hub Driving Key 037-0665 – Washer Cap 012-0094 – Socket Head Cap Screw 017-0002 – Pinion Gear Key 016-0051 – Snap Ring 037-0666 – Quill Rack Pinion Shaft Washer 037-0667 – Pinion Gear 037-0668 – Spacer 037-0669 – Felt Bushing 037-0566 – Clock Spring Assembly 037-0670 – Quill Spring Hub 037-0671 – Quill Return Spring Hub Spacer 016-0052 – Snap Ring 037-0672 – Quill Alignment Key 1402 – Steel Ball 012-0086 – Set Screw 012-0087 – Socket Head Cap Screw 037-0673 – Quill Housing Adjusting Worm Gear 037-0674 – Quill Housing Adjusting Worm Gear Shaft 017-0038 – Woodruff Key 012-0095 – Socket Head Cap Screw 037-0675 – Quill Housing Adjusting Gear 037-0600 – Quill Binder Tapped 037-0601 – Quill Binder, Untapped 037-0602 – Quill Binder Stud 037-0570 – Handle 037-0607 – Allen Hex Nut 037-0604 – Quill Micrometer Screw 037-0605 – Micrometer Nut 037-0606 – Micrometer Stop Nut 037-0676 – Micrometer Scale 1434-A – Upper Round Head Screw 037-0677 – Washer 037-0696 – Oil Cup 037-0678 – TBolt Spacer 037-0679 – TBolt 037-0680 – Right Hand Cover 037-0707 – TBolt Nut Dog Point Set Screw | 1222 Quill Feed Handle | 037-0875 Return Spring Hub Pin | 037-0698

Return Spring Hub Pin | 037-0698

NOTE: ALL PRICES AND AVAILABILITY ON SERIES II PARTS ARE SUBJECT TO CHANGE WITHOUT NOTICE & SAID CHANGES MAY NOT BE REFLECTED IN THE PRICES LISTED BELOW. CALL 1-800-285-5271 FOR CURRENT PRICE & AVAILABILITY. WE HAVE THE RIGHT TO CANCEL ANY ORDERS NOT REFLECTING CURRENT PRICE OR AVAILABILITY.

Parts Breakdown

Number Part Number Part Name Part Link
1 037-0662 Bridgeport Series II Quill Housing (Obsolete) Bridgeport Series II Quill Housing (Obsolete) | 037-0662
