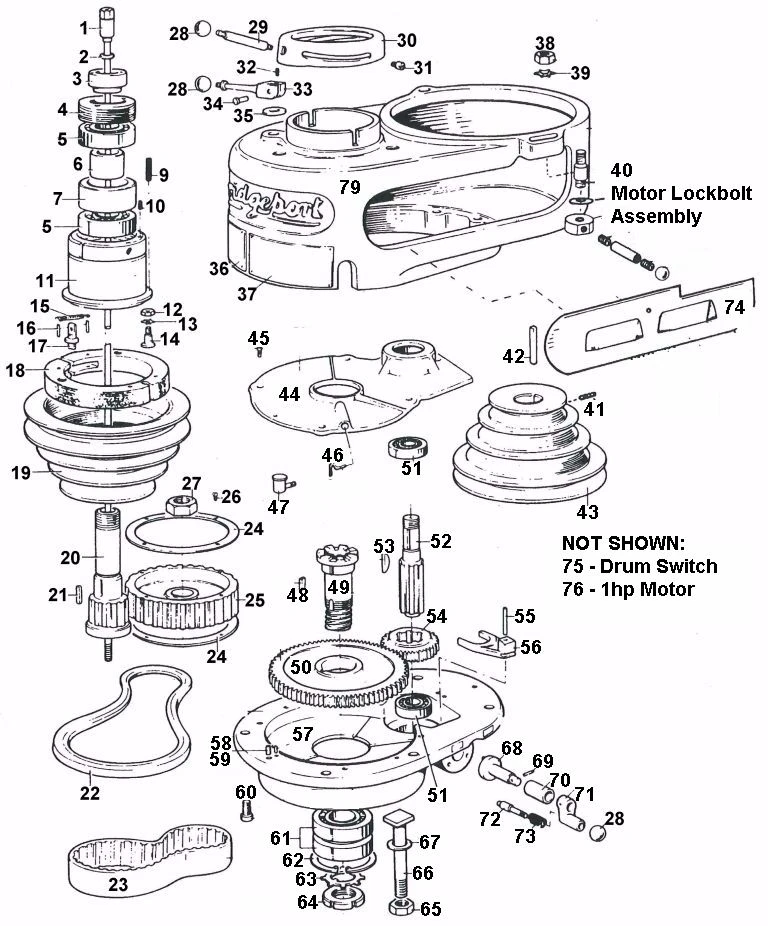

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
This diagram is interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part, the part number, or if the part is obsolete.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 1028 | Bridgeport Step Pulley Two – Life Drawbar | Bridgeport Step Pulley Two – Life Drawbar | 1028 |
| 2 | 6002 | Bridgeport Drawbar Washer “O” Ring | Bridgeport Drawbar Washer “O” Ring | 6002 |
| 3 | 1141 | Bridgeport Upper Bearing Locknut | Bridgeport Upper Bearing Locknut | 1141 |
| 4 | 1142 | Bridgeport Bearing Sleeve Locknut | Bridgeport Bearing Sleeve Locknut | 1142 |
| 5 | 1251 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1251 |
| 6 | 1252 | Bridgeport Upper Bearing Spacer Set | Bridgeport Upper Bearing Spacer Set | 1252 |
| 7 | 1252 | Bridgeport Upper Bearing Spacer Set | Bridgeport Spindle Pulley Bearing Sleeve Assembly 1128-A | 1128-A |
| 9 | 1108 | Bridgeport Compression Spring | Bridgeport Compression Spring | 1108 |
| 10 | 1254 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1254 |
| 11 | 1128 | Bridgeport Spindle Pulley Bearing Sleeve | Bridgeport Spindle Pulley Bearing Sleeve | 1128 |
| 12 | 1132-03 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1132-03 |
| 13 | 1132-02 | Bridgeport External Lock Washer | Bridgeport External Lock Washer | 1132-02 |
| 14 | 1132-01 | Bridgeport Brake Ring Screw | Bridgeport Brake Ring Screw | 1132-01 |
| 15 | 1111-02 | Bridgeport Brake Spring (Set of 2) | Bridgeport Brake Spring (Set of 2)| 1111-02 |
| 16 | 6015 | Bridgeport Roll Pin | Bridgeport Roll Pin | 6015 |
| 17 | 1107 | Bridgeport Brake Lock Stud | Bridgeport Brake Lock Stud | 1107 |
| 18 | 1111 | Bridgeport Brake Block Assembly | Bridgeport Brake Spring (Set of 2)| 1111-02 |
| 19 | 1255 | Bridgeport Spindle Pulley | Bridgeport Spindle Pulley | 1255 |
| 20 | 1116 | Bridgeport Spindle Pulley Hub | Bridgeport Spindle Pulley Hub | 1116 |
| 21 | 1125 | Bridgeport Spindle Pulley Key | Bridgeport Spindle Pulley Key | 1125 |
| 22 | 1256 | Bridgeport V – Belt | Bridgeport V – Belt | 1256 |
| 23 | 1536 and 1115 | Bridgeport Timing Belt | Bridgeport Timing Belt | 1536 and 1115 |
| 24 | 1144 | Bridgeport Timing Belt Pulley Flange | Bridgeport Timing Belt Pulley Flange | 1144 |
| 26 | 1257 | Bridgeport Flat Head Screw | Bridgeport Flat Head Screw | 1257 |
| 27 | 1258 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1258 |
| 28 | 1259 | Bridgeport Plastic Ball | Bridgeport Plastic Ball | 1259 |
| 29 | 1100 | Bridgeport Spindle Clutch Lever w/Ball | Bridgeport Spindle Clutch Lever w/Ball | 1100 |
| 30 | 1143 | Bridgeport Cam Ring | Bridgeport Cam Ring | 1143 |
| 31 | 1109 | Bridgeport Cam Ring Pin | Bridgeport Cam Ring Pin | 1109 |
| 32 | 1260 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1260 |
| 33 | 1261 | Bridgeport Brake Lock Handle | Bridgeport Brake Lock Handle | 1261 |
| 34 | 1262 | Bridgeport Brake Lock Pin | Bridgeport Brake Lock Pin | 1262 |
| 35 | 1200 | Bridgeport Washer | Bridgeport Washer | 1200 |
| 36 | 1075 | Bridgeport Spindle Speed Name Plate | Bridgeport Spindle Speed Name Plate | 1075 |
| 37 | 1074 | Bridgeport Hi – Low Range Name Plate | Bridgeport Hi – Low Range Name Plate | 1074 |
| 38 | 1264 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1264 |
| 39 | 1265 | Bridgeport Lock Washer | Bridgeport Lock Washer | 1265 |
| 40 | 1155-03 | Bridgeport Motor Locknut Assembly | Bridgeport Motor Locknut Assembly | 1155-03 |
| 41 | 6019 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 6019 |
| 42 | 1268-01 | Bridgeport Worm Key | Bridgeport Worm Key | 1268-01 |
| 43 | 1268 | Bridgeport Motor Pulley | Bridgeport Motor Pulley | 1268 |
| 44 | 1269 | Bridgeport Gear Housing Cover | Bridgeport Gear Housing Cover | 1269 |
| 45 | 1270 | Bridgeport Round Head Screw | Bridgeport Round Head Screw | 1270 |
| 46 | 6020 | Bridgeport Oil Wick | Bridgeport Oil Wick | 6020 |
| 47 | 1273 | Bridgeport Oil Cup | Bridgeport Oil Cup | 1273 |
| 48 | 1530 | Bridgeport Key | Bridgeport Key | 1530 |
| 49 | 1160 | Bridgeport Splined Gear Hub | Bridgeport 1HP Deluxe Rebuild Kit | RBK-DLXJ1 |
| 50 | 1276 | Bridgeport Spindle Bull Gear Assembly | Bridgeport Spindle Bull Gear Assembly | 1276 |
| 51 | 1277 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1277 |
| 52 | 1276 | Bridgeport Spindle Bull Gear Assembly | Bridgeport Spindle Bull Gear Assembly | 1276 |
| 53 | 1277 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1277 |
| 54 | 1276 | Bridgeport Spindle Bull Gear Assembly | Bridgeport Spindle Bull Gear Assembly | 1276 |
| 55 | 1281 | Bridgeport Dowel Pin | Bridgeport Dowel Pin | 1281 |
| 56 | 1282 | Bridgeport Back Gear Shifter Fork | Bridgeport Back Gear Shifter Fork | 1282 |
| 57 | 1283 |
Bridgeport Gear Housing | Bridgeport Gear Housing | 1283 |
| 58 | 1284 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1284 |
| 59 | 1285 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1285 |
| 60 | 1286 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1286 |
| 61 | 1287 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1287 |
| 62 | 1288 | Bridgeport Snap Ring | Bridgeport Snap Ring | 1288 |
| 63 | 1289 | Bridgeport Lockwasher | Bridgeport Lockwasher | 1289 |
| 64 | 1290 | Bridgeport Bearing Locknut | Bridgeport Bearing Locknut | 1290 |
| 65 | 1291 | Bridgeport Hex Nut | Bridgeport Hex Nut | 1291 |
| 66 | 1292 | Bridgeport Vertical Tee Bolt | Bridgeport Vertical Tee Bolt | 1292 |
| 67 | 1496 | Bridgeport Steel Washer | Bridgeport Steel Washer | 1496 |
| 68 | 1294 | Bridgeport Back Gear Shift Crank | Bridgeport Back Gear Shift Crank | 1294 |
| 69 | 1295 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1295 |
| 70 | 1296 | Bridgeport Back Gear Shift Bushing | Bridgeport Back Gear Shift Bushing | 1296 |
| 71 | 1297 | Bridgeport Shift Crank | Bridgeport Back Gear Shift Bushing | 1296 |
| 72 | 1299 | Bridgeport Gearshift Plunger | Bridgeport Gearshift Plunger | 1299 |
| 73 | 1300 | Bridgeport Compression Spring | Bridgeport Compression Spring | 1300 |
| Part Number | Part Name | Part Link |
|---|---|---|
| 2X441 | Dayton Drum Switch | Dayton Drum Switch | 2X441 |
| SP23PH | Three Phase Conversion Kit for 1 HP Bridgeport Motor | Three Phase Conversion Kit for 1 HP Bridgeport Motor | SP23PH |
| 1109-TWD | Tap and Drill Kit | Tap and Drill Kit | 1109-TWD |
| BRM-J | Guide to Renovating the Bridgeport “J” Head Machine | Tap and Drill Kit | 1109-TWD |
| BRM-1 | Bridgeport Series I Operators Manual | Bridgeport Series I Operators Manual | BRM-1 |
| EP-2 | Grease | Grease | EP-2 |
| KL50151 | Spanner Wrench | Spanner Wrench | KL50151 |
| Spindle Oil | Spindle Oil | Spindle Oil |
| 1297-A | Bridgeport Shift Crank Assembly | Bridgeport Shift Crank Assembly | 1297-A |
| Variable Frequency Drive Kit – 1HP | Variable Frequency Drive Kit – 1HP | Variable Frequency Drive Kit – 1HP |
| 1776 | American Flag Sticker | American Flag Sticker | 1776 |
