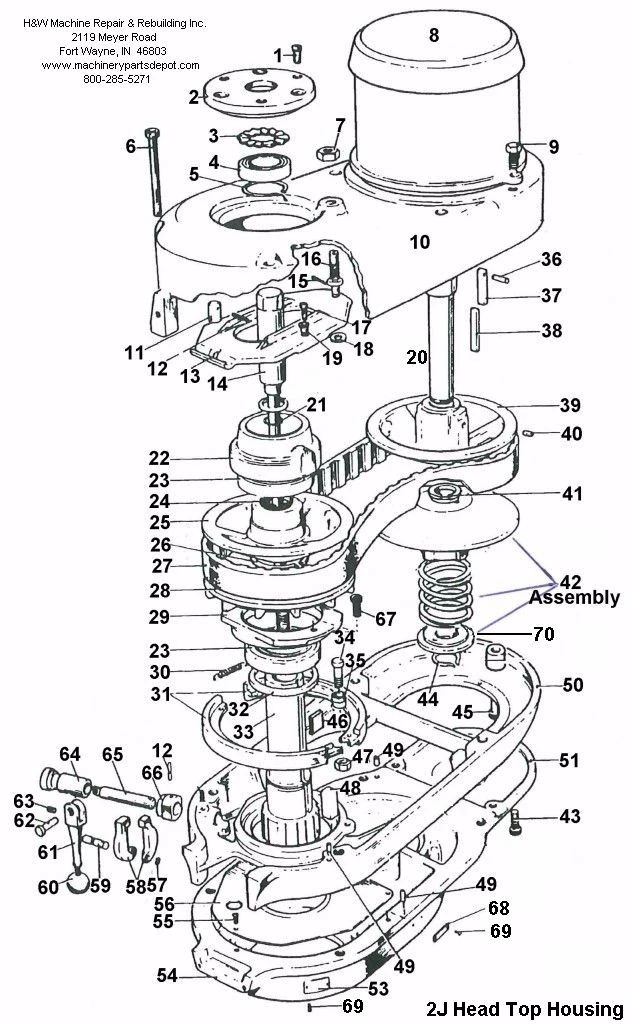

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
This diagram is interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part, the part number, or if the part is obsolete.
| Number | Part Number | Part Named | Part Link |
|---|---|---|---|
| 1 | 1195 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1195 |
| 2 | 1468 | Bridgeport Top Bearing Cap | Bridgeport Top Bearing Cap | 1468 |
| 3 | 1508 | Bridgeport Wave Spring Washer | Bridgeport Wave Spring Washer | 1508 |
| 4 | 1542 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1542 |
| 5 | 1543 | Bridgeport Snap Ring | Bridgeport Snap Ring | 1543 |
| 6 | 1544 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1544 |
| 7 | 1545 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1545 |
| 8 | 1547 | Bridgeport Rebuilt 2HP Motor | Bridgeport Rebuilt 2HP Motor | 1547 |
| 9 | 1548 | Bridgeport Hex Head Screw | Bridgeport Hex Head Screw | 1548 |
| 10 | 1575 | Bridgeport Belt Housing Base | Bridgeport Belt Housing Base | 1575 |
| 11 | 1464 | Bridgeport Speed Change Stud | Bridgeport Speed Change Stud | 1464 |
| 12 | 1463 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1463 |
| 13 | 1551 | Bridgeport Speed Change Plate | Bridgeport Speed Change Plate | 1551 |
| 14 | 1026 | Bridgeport Variable Speed Two – Life Drawbar | Bridgeport Variable Speed Two – Life Drawbar | 1026 |
| 15 | 1552 | Bridgeport Cotter Pin | Bridgeport Cotter Pin | 1552 |
| 16 | 1553 | Bridgeport Speed Change Plate Pivot Stud | Bridgeport Speed Change Plate Pivot Stud | 1553 |
| 17 | 1554 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1554 |
| 18 | 1561 | Bridgeport Stationary Drive Variable Disc | Bridgeport Stationary Drive Variable Disc | 1561 |
| 19 | 1556 | Bridgeport Pivot Sleeve | Bridgeport Stationary Drive Variable Disc | 1561 |
| 20 | 1547-08 and 1546-08 | Bridgeport Motor Shaft Rotor Assembly | Bridgeport Motor Shaft Rotor Assembly | 1547-08 and 1546-08 |
| 21 | 6002 | Bridgeport Drawbar Washer “O” Ring | Bridgeport Drawbar Washer “O” Ring | 6002 |
| 22 | 1557 | Bridgeport Spindle Pulley Bearing Sliding Housing | Bridgeport Spindle Pulley Bearing Sliding Housing | 1557 |
| 23 | 1558 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1558 |
| 24 | 1126 | Bridgeport Plastic Bushing, Spindle Side (Set of 2) | Millport Variable Speed Rebuild Kit | RBK-MPVS |
| 25 | 1559 | Bridgeport Adjustable Drive Vari – Disc | Bridgeport Adjustable Drive Vari – Disc | 1559 |
| 26 | 1560 | Bridgeport Snap Ring | Bridgeport Snap Ring | 1560 |
| 27 | 1105 | Bridgeport Variable Speed Drive Belt | Bridgeport Variable Speed Drive Belt | 1105 |
| 28 | 1561 | Bridgeport Stationary Drive Variable Disc | Bridgeport Stationary Drive Variable Disc | 1561 |
| 29 | 1127 | Bridgeport Brake Bearing Cap | Bridgeport Brake Bearing Cap | 1127 |
| 30 | 1562 | Bridgeport Brake Spring (Set of 2) | Bridgeport Brake Spring (Set of 2) | 1562 |
| 31 | 1563 | Bridgeport Brake Shoe Set | Bridgeport Brake Shoe Set | 1563 |
| 32 | 1564 |
Bridgeport Spindle Pulley Spacer | Bridgeport Spindle Pulley Spacer | 1564 |
| 33 | 1537 and 1117 | Bridgeport Spindle Pulley Hub | Bridgeport Spindle Pulley Hub | 1537 and 1117 |
| 34 | 1566 | Bridgeport Brake Shoe Pivot Sleeve | Bridgeport Brake Shoe Pivot Sleeve | 1566 |
| 35 | 1565 | Bridgeport Hex Head Screw | Bridgeport Series II Hex Head Screw (Obsolete) | 012-0081 |
| 36 | 1407 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1407 |
| 37 | 1597 and 1568 | Bridgeport Stationary Motor Pulley Key | Bridgeport Stationary Motor Pulley Key | 1597 and 1568 |
| 38 | 1035-A and 1035-B | Bridgeport Plastic Key, Motor Side | Bridgeport Adjustable Motor Vari – Disc Assembly | 1036 and 1037 |
| 39 | 1598 and 1569 | Bridgeport Stationary Motor Vari – Disc | Bridgeport Stationary Motor Vari – Disc | 1598 and 1569 |
| 40 | 1307 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1307 |
| 41 | 1114 and 1113 | Bridgeport Motor Vari – Disc Plastic Insert Bushing (Set of 2) | Bridgeport Motor Vari – Disc Plastic Insert Bushing (Set of 2) | 1114 and 1113 |
| 42 | 1036 and 1037 | Bridgeport Adjustable Motor Vari – Disc Assembly | Bridgeport Adjustable Motor Vari – Disc Assembly | 1036 and 1037 |
| 43 | 1524-A | Bridgeport Socket Head Cap Screw, 2HP | Bridgeport Socket Head Cap Screw, 2HP | 1524-A |
| 44 | 1599 and 1571 | Bridgeport Retaining Ring | Bridgeport Retaining Ring | 1599 and 1571 |
| 45 | 1523 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1523 |
| 46 | 1095 | Bridgeport Plastic Key, Spindle Side | Bridgeport Plastic Key, Spindle Side | 1095 |
| 47 | 6006 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 6006 |
| 48 | 1573 | Bridgeport Key | Bridgeport Key | 1573 |
| 49 | 1574 | Bridgeport Taper Pin | Bridgeport Taper Pin | 1574 |
| 50 | 1575 | Bridgeport Belt Housing Base | Bridgeport Belt Housing Base | 1575 |
| 51 | 1525 | Bridgeport Motor Pulley Cover | Bridgeport Motor Pulley Cover | 1525 |
| 53 | 1581 | Bridgeport Quill Feed Name Plate | Bridgeport Quill Feed Name Plate | 1581 |
| 54 | 1494 | Bridgeport Gear Housing | Bridgeport Gear Housing | 1494 |
| 55 | 1584 | Bridgeport Round Head Machine Screw | Bridgeport Round Head Machine Screw | 1584 |
| 56 | 1585 | Bridgeport Gear Housing Plate | Bridgeport Gear Housing Plate | 1585 |
| 57 | 1030-03 | Bridgeport Snap Ring | Bridgeport Snap Ring | 1030-03 |
| 58 | 1588 | Bridgeport Brake Operating Finger, Set of Two | Bridgeport Snap Ring | 1030-03 |
| 59 | 1587 | Bridgeport Brake Finger Pivot Stud | Bridgeport Brake Finger Pivot Stud | 1587 |
| 60 | 1259 | Bridgeport Plastic Ball | Bridgeport Plastic Ball | 1259 |
| 61 | 1261 | Bridgeport Brake Lock Handle | Bridgeport Brake Lock Handle | 1261 |
| 62 | 1262 | Bridgeport Brake Lock Pin | Bridgeport Brake Lock Pin | 1262 |
| 63 | 1260 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1260 |
| 64 | 1592 | Bridgeport Sleeve for Brake Lock Shaft | Bridgeport Sleeve for Brake Lock Shaft | 1592 |
| 65 | 1593 | Bridgeport Brake Lock Shaft | Bridgeport Brake Lock Shaft | 1593 |
| 66 | 1594 | Bridgeport Brake Lock Cam | Bridgeport Brake Lock Cam | 1594 |
| Part Number | Part Name | Part Link |
|---|---|---|
| 2X441 | Dayton Drum Switch | Dayton Drum Switch | 2X441 |
| 043-0042 | OC Controls Drum Switch | OC Controls Drum Switch | 043-0042 |
| 1537 and 1117 | Bridgeport Spindle Pulley Hub | Bridgeport Spindle Pulley Hub | 1537 and 1117 |
| 1536 and 1115 | Bridgeport Timing Belt | Bridgeport Timing Belt | 1536 and 1115 |
| 1455-A and 1455-B | Bridgeport Vari – Speed Dial | Bridgeport Vari – Speed Dial | 1455-A and 1455-B |
| 1539 and 1146 | Bridgeport Timing Belt Pulley | Bridgeport Timing Belt Pulley | 1539 and 1146 |
| BRM-2J | Guide to Renovating the Bridgeport “2J” Head Machine | Guide to Renovating the Bridgeport “2J” Head Machine | BRM-2J |
| BRM-1 | Bridgeport Series I Operators Manual | Bridgeport Series I Operators Manual | BRM-1 |
| Spindle Oil | Spindle Oil | M-Head Breakout Page |
| Way Oil | Way Oil | Way Oil |
| B-105 | Lubriplate | Lubriplate | B-105 |
| 1603-P | Bridgeport Bearing Block (Plastic) | Bridgeport Bearing Block (Plastic) | 1603-P |
| 1520-A | Bridgeport Hi – Low Shift Crank Assembly | Bridgeport Hi – Low Shift Crank Assembly | 1520-A |
| 1520-B | Bridgeport Hi – Low Shift Crank Handle Assembly | Bridgeport Hi – Low Shift Crank Handle Assembly | 1520-B |
| Speed – Rite AC Variable Frequency Drive Package – 3HP | Speed – Rite AC Variable Frequency Drive Package – 3HP | Speed – Rite AC Variable Frequency Drive Package – 5HP |
| Maxi Torque – Rite Power Drawbar System | Maxi Torque – Rite Power Drawbar System | Speed – Rite AC Variable Frequency Drive Package – 5HP |
| 1776 | American Flag Sticker | American Flag Sticker | 1776 |
