8″ Vise with 10.0″ Opening
The Best D-Series Vise We’ve Ever Produced
Combining all the great features of our world-renowned Kurt D810 and 3800V vises, along with new state-of-the-art workholding features, Kurt® Workholding’s revolutionary DX8® CrossOver® vise achieves new levels in precision and performance where flatness and parallelism are important. Featuring a cast on stationary allowing for less deflection and more stability of the vise body during clamping.

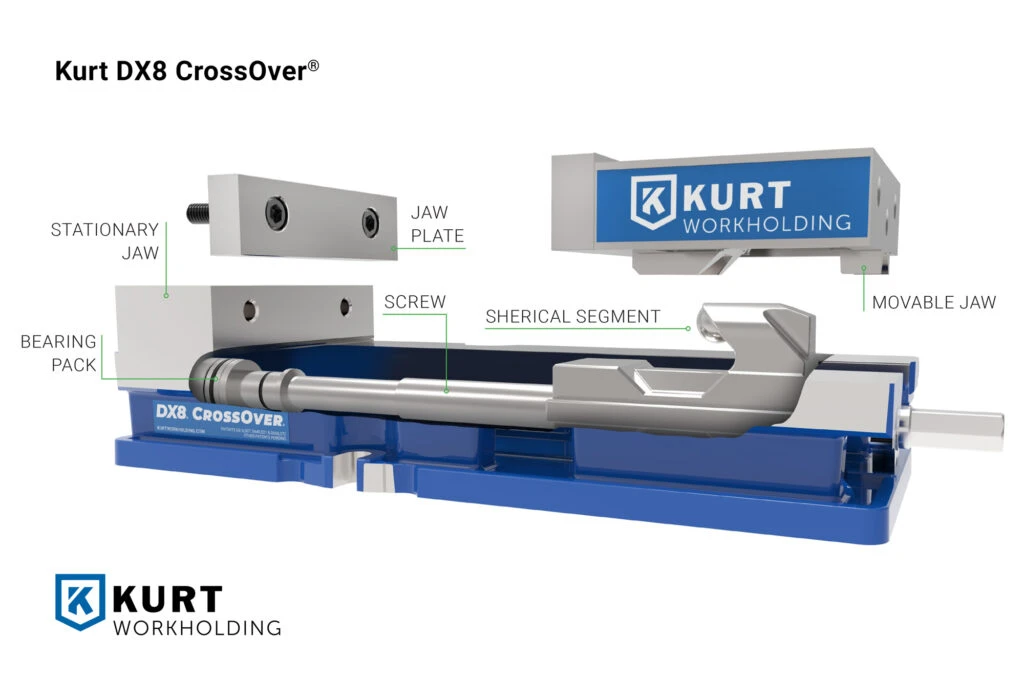

By every measure, this is a better vise than our own D810. The DX8 CrossOver vise features the same bed height and keyway to the stationary jaw face as the D810, a redesigned nut with lighter weight, and a new brush seal design. The bearing pack is larger, stronger, and more durable than our other designs, and our proprietary AngLock® spherical segment creates all-directional alignment and reduces jaw lift for improved performance.

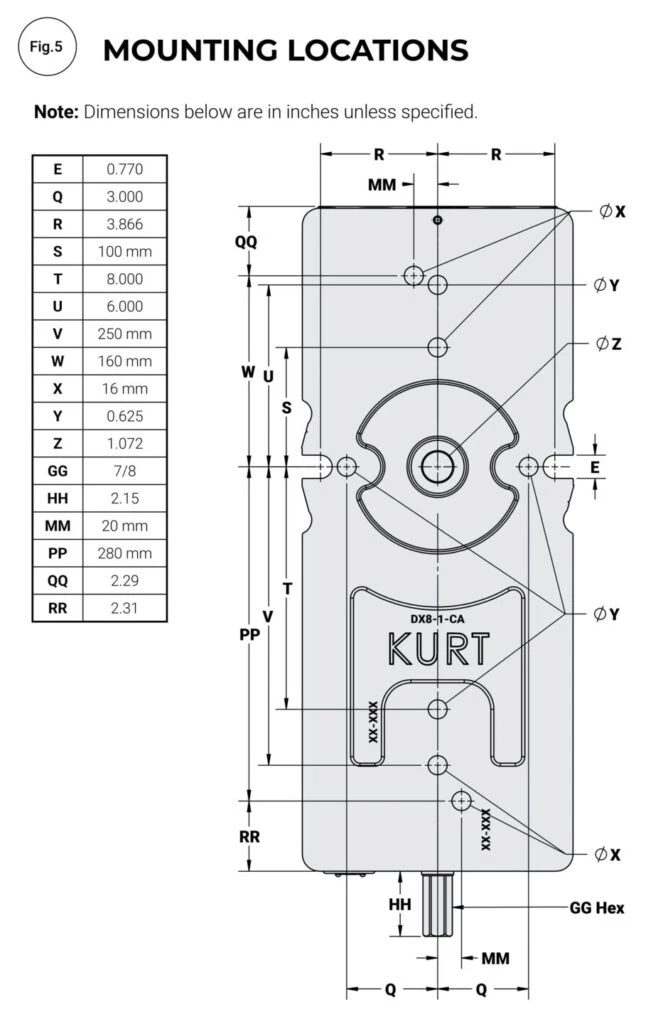

We have moved to sine keys for mounting ease and accuracy. For more information, please check out our mounting page or sine keys page.
