Encoder Assemblies (including): Serial reader head, Scale Tube, Brackets for scale tube
Note: 2 axis packages come with NMS800
with no aux output as standard. Please
contact us if aux output is required
NMS800 Packages with a quill encoder are provided with 2” travel Microsyn.
Once mounted the encoder will provide 5” of travel

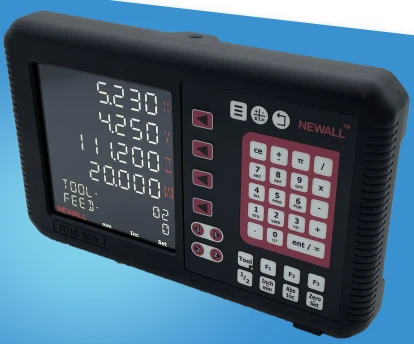

The NMS 800 Digital Readout (DRO) is the newest in Newall’s range of premium readouts. The DRO hosts many productivity-enhancing features that will increase machine tool efficiency. The NMS 800, when matched with Newall’s Spherosyn Serial and Microsyn Serial encoders, provides years of maintenance-free, trouble-free performance. Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest workshop conditions.

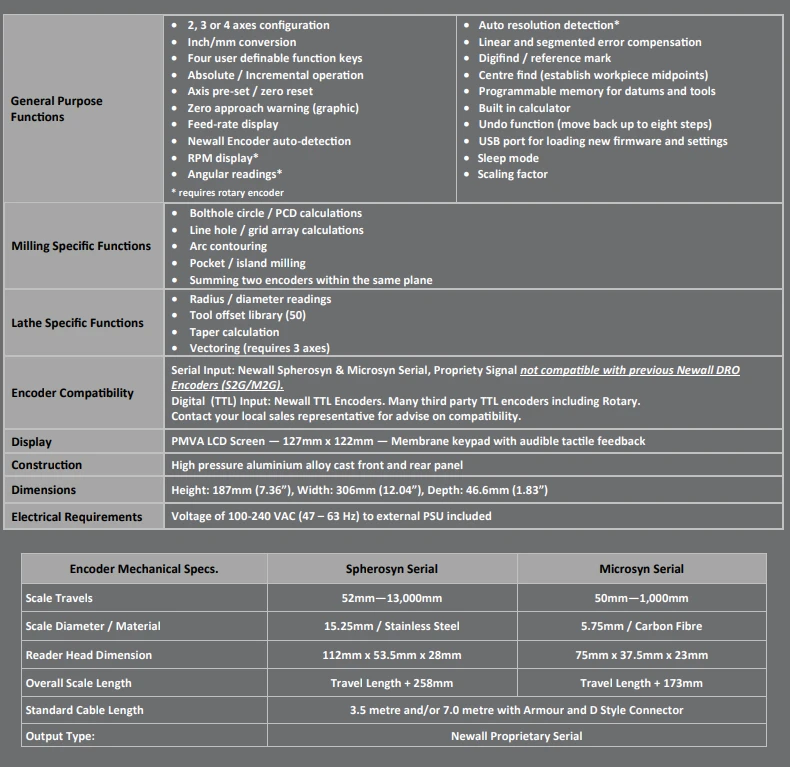

FEATURES INCLUDE:
Clean, crisp PMVA LCD display with wide
viewing angle
Lathe, Mill, and General Purpose functions
Self-Sensing Encoder Input
Available in 2, 3, or 4 axes
User-definable function keys to shortcut to your most common features
Linear and angular readings
Stand-alone or panel mounting
Five Year, Three Year no Fault Warranty Included!

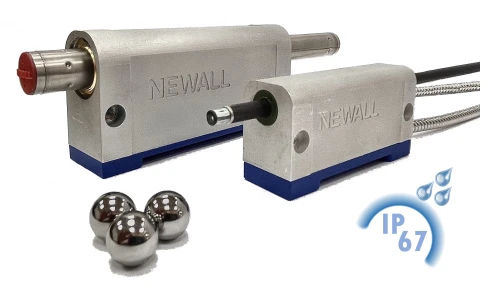

The Newall Advantage
• Backed by a company with over 50 years of proven reliability in manufacturing DRO systems & linear encoders
• Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment
• Continually provides accurate readings even under the harshest shop conditions
• No cleaning or maintenance is required
• Tolerant to shock and vibration
• No glass or tape to break or scratch
• Ease of installation—no backer bar or machined surface required
Important points to remember when ordering:
• Always verify travel sizes. Measure twice, order once.
• Order encoders by travel length, not overall length.
• Spherosyn / DSG: Travel + 10.2” = overall length.
• Microsyn / DMG: Travel + 7.4” = overall length.
• Encoders include the reader head with 11.5’ cable, scale, scale cover, and brackets to mount the scale.
• Scales that are single-end mounted will provide two inches of additional travel.
• Display mounting arms are sold separately (see page 8) unless included in a package.
• Spherosyn and Microsyn reader heads have an 11.5’ cable. Longer cable lengths are available. Extension cables may be required for applications of 100” of travel or more. TIP: Be sure
to order extension cables on the longer travels, even if you are not sure they will be needed.
12" x 24" 2 Axis N802412XXM1012, 12" x 24" x 5" 3 Axes Quill N80241202M3012, 12" x 24" x 16" 3 Axis Knee N802412XXM2012, 12" x 24" x 16" x 5" 4 Axis NQ24121602M6012, 12" x 30" 2 Axis N803012XXM1012, 12" x 30" x 5" 3 Axes Quill N80301202M3012, 12" x 30" x 16" 3 Axis Knee N803012XXM2012, 12" x 30" x 16" x 5" 4 Axis NQ30121602M6012, 12" x 32" 2 Axis N803212XXM1012, 12" x 32" x 5" 3 Axes Quill N80321202M3012, 12" x 32" x 16" 3 Axis Knee N803212XXM2012, 12" x 32" x 16" x 5" 4 Axis NQ32121602M6012, 12" x 36" 2 Axis N803612XXM1012, 12" x 36" x 5" 3 Axes Quill N80361202M3012, 12" x 36" x 16" 3 Axis Knee N803612XXM2012, 12" x 36" x 16" x 5" 4 Axis NQ36121602M6012, 16" x 30" 2 Axis N803016XXM1012, 16" x 30" x 5" 3 Axes Quill N80301602M3012, 16" x 30" x 16" 3 Axis Knee N803016XXM2012, 16" x 30" x 16" x 5" 4 Axis NQ30161602M6012, 16" x 36" 2 Axis N803616XXM1012, 16" x 36" x 5" 3 Axes Quill N80361602M3012, 16" x 36" x 16" 3 Axis Knee N803616XXM2012, 16" x 36" x 16" x 5" 4 Axis NQ36161602M6012, 16" x 40" 2 Axis N804012XXM1012, 16" x 40" x 5" 3 Axes Quill N80401202M3012, 16" x 40" x 16" 3 Axis Knee N804012XXM2012, 16" x 40" x 16" x 5" 4 Axis NQ40121602M6012
Newall NMS800 Milling Machine Digital Readout Systems
$2,169.00 – $3,224.00
NMS 800 Systems are not compatible with parts from Newall DP 700 systems.
Description
Systems Include:
Note: 2 axis packages come with NMS800
with no aux output as standard. Please
contact us if aux output is required
NMS800 Packages with a quill encoder are provided with 2” travel Microsyn.
Once mounted the encoder will provide 5” of travel
The NMS 800 Digital Readout (DRO) is the newest in Newall’s range of premium readouts. The DRO hosts many productivity-enhancing features that will increase machine tool efficiency. The NMS 800, when matched with Newall’s Spherosyn Serial and Microsyn Serial encoders, provides years of maintenance-free, trouble-free performance. Newall’s inductive encoders are simple to install and designed to provide consistent accuracy and reliability even under the harshest workshop conditions.
FEATURES INCLUDE:
viewing angle
Five Year, Three Year no Fault Warranty Included!
The Newall Advantage
• Backed by a company with over 50 years of proven reliability in manufacturing DRO systems & linear encoders
• Encoders carry an IP67 rating – All electronic and measuring components are sealed from the environment
• Continually provides accurate readings even under the harshest shop conditions
• No cleaning or maintenance is required
• Tolerant to shock and vibration
• No glass or tape to break or scratch
• Ease of installation—no backer bar or machined surface required
Important points to remember when ordering:
• Always verify travel sizes. Measure twice, order once.
• Order encoders by travel length, not overall length.
• Spherosyn / DSG: Travel + 10.2” = overall length.
• Microsyn / DMG: Travel + 7.4” = overall length.
• Encoders include the reader head with 11.5’ cable, scale, scale cover, and brackets to mount the scale.
• Scales that are single-end mounted will provide two inches of additional travel.
• Display mounting arms are sold separately (see page 8) unless included in a package.
• Spherosyn and Microsyn reader heads have an 11.5’ cable. Longer cable lengths are available. Extension cables may be required for applications of 100” of travel or more. TIP: Be sure
to order extension cables on the longer travels, even if you are not sure they will be needed.
Product SKU:
N802412XXM1012, N80241202M3012, N802412XXM2012, NQ24121602M6012, N803012XXM1012, N80301202M3012, N803012XXM2012, NQ30121602M6012, N803212XXM1012, N80321202M3012, N803212XXM2012, NQ32121602M6012, N803612XXM1012, N80361202M3012, N803612XXM2012, NQ36121602M6012, N803016XXM1012, N80301602M3012, N803016XXM2012, NQ30161602M6012, N803616XXM1012, N80361602M3012, N803616XXM2012, NQ36161602M6012, N804012XXM1012, N80401202M3012, N804012XXM2012, NQ40121602M6012
Additional information
12" x 24" 2 Axis N802412XXM1012, 12" x 24" x 5" 3 Axes Quill N80241202M3012, 12" x 24" x 16" 3 Axis Knee N802412XXM2012, 12" x 24" x 16" x 5" 4 Axis NQ24121602M6012, 12" x 30" 2 Axis N803012XXM1012, 12" x 30" x 5" 3 Axes Quill N80301202M3012, 12" x 30" x 16" 3 Axis Knee N803012XXM2012, 12" x 30" x 16" x 5" 4 Axis NQ30121602M6012, 12" x 32" 2 Axis N803212XXM1012, 12" x 32" x 5" 3 Axes Quill N80321202M3012, 12" x 32" x 16" 3 Axis Knee N803212XXM2012, 12" x 32" x 16" x 5" 4 Axis NQ32121602M6012, 12" x 36" 2 Axis N803612XXM1012, 12" x 36" x 5" 3 Axes Quill N80361202M3012, 12" x 36" x 16" 3 Axis Knee N803612XXM2012, 12" x 36" x 16" x 5" 4 Axis NQ36121602M6012, 16" x 30" 2 Axis N803016XXM1012, 16" x 30" x 5" 3 Axes Quill N80301602M3012, 16" x 30" x 16" 3 Axis Knee N803016XXM2012, 16" x 30" x 16" x 5" 4 Axis NQ30161602M6012, 16" x 36" 2 Axis N803616XXM1012, 16" x 36" x 5" 3 Axes Quill N80361602M3012, 16" x 36" x 16" 3 Axis Knee N803616XXM2012, 16" x 36" x 16" x 5" 4 Axis NQ36161602M6012, 16" x 40" 2 Axis N804012XXM1012, 16" x 40" x 5" 3 Axes Quill N80401202M3012, 16" x 40" x 16" 3 Axis Knee N804012XXM2012, 16" x 40" x 16" x 5" 4 Axis NQ40121602M6012
