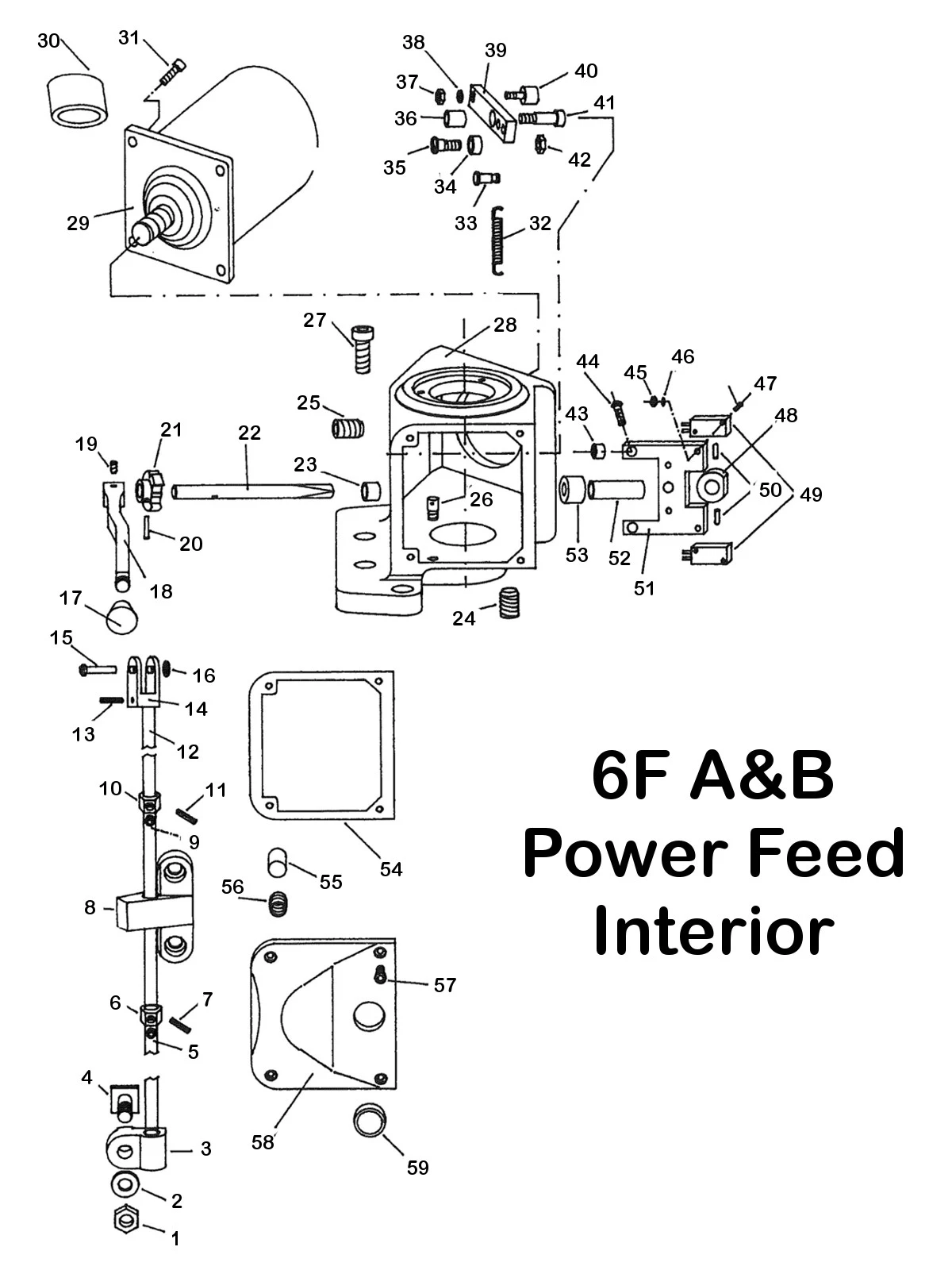

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 1205 | Bridgeport Hex Nut | Bridgeport Hex Nut | 1205 |
| 2 | 038-0102 | Bridgeport Power Feed Washer | Bridgeport Power Feed Washer | 038-0102 |
| 3 | 038-0104 | Bridgeport Power Feed Stop Rod Guide | Bridgeport Power Feed Stop Rod Guide | 038-0104 |
| 4 | 1203 | Bridgeport Stop Piece T-Bolt | Bridgeport Stop Piece T-Bolt | 1203 |
| 5 | 1307 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1307 |
| 6 | 038-0107 | Bridgeport Power Feed Stop Collar | Bridgeport Power Feed Stop Collar | 038-0107 |
| 7 | 038-0278 | Bridgeport Power Feed Roll Pin | Bridgeport Power Feed Roll Pin | 038-0278 |
| 8 | 038-0108 | Bridgeport Power Feed Stop Rod Bracket | Bridgeport Power Feed Stop Rod Bracket | 038-0108 |
| 9 | 1307 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1307 |
| 10 | 038-0107 | Bridgeport Power Feed Stop Collar | Bridgeport Power Feed Stop Collar | 038-0107 |
| 11 | 038-0278 | Bridgeport Power Feed Roll Pin | Bridgeport Power Feed Roll Pin | 038-0278 |
| 12 | 038-0109 | 038-0110 | Bridgeport Power Feed Stop Rod | Bridgeport Power Feed Stop Rod | 038-0109 | 038-0110 |
| 13 | 013-0058 | Bridgeport Power Feed Roll Pin | Bridgeport Power Feed Roll Pin | 013-0058 |
| 14 | 038-0105 | Bridgeport Power Feed Rod Fork | Bridgeport Power Feed Rod Fork | 038-0105 |
| 15 | 038-0229 | Bridgeport Power Feed Fork Pin | Bridgeport Power Feed Fork Pin | 038-0229 |
| 16 | 038-0115 | Bridgeport Power Feed Retaining Ring | Bridgeport Power Feed Retaining Ring | 038-0115 |
| 17 | 038-0114 | Bridgeport Power Feed Black Knob | Bridgeport Power Feed Black Knob | 038-0114 |
| 18 | 038-0231 | Bridgeport Power Feed Control Handle Lever | Bridgeport Power Feed Control Handle Lever | 038-0231 |
| 19 | 012-0144 | Bridgeport Power Feed Set Screw | Bridgeport Power Feed Set Screw | 012-0144 |
| 20 | 013-0058 | Bridgeport Power Feed Roll Pin | Bridgeport Power Feed Roll Pin | 013-0058 |
| 21 | 038-0234 | Bridgeport Power Feed Clutch Detent Cam | Bridgeport Power Feed Clutch Detent Cam | 038-0234 |
| 22 | 038-0321 | Bridgeport Power Feed Clutch Shaft | Bridgeport Power Feed Clutch Shaft | 038-0321 |
| 23 | 038-0118 | Bridgeport Power Feed Bronze Bushing | Bridgeport Power Feed Bronze Bushing | 038-0118 |
| 24 | 038-0119 | Bridgeport Power Feed Pipe Plug | Bridgeport Power Feed Pipe Plug | 038-0119 |
| 25 | 038-0119 | Bridgeport Power Feed Pipe Plug | Bridgeport Power Feed Pipe Plug | 038-0119 |
| 26 | 038-0242 | Bridgeport Power Feed Spring Pin | Bridgeport Power Feed Spring Pin | 038-0242 |
| 27 | 012-0137 | Bridgeport Power Feed Socket Head Cap Screw | Bridgeport Power Feed Socket Head Cap Screw | 012-0137 |
| 28 | 038-0290 | Bridgeport Power Feed Main Housing | Bridgeport Power Feed Main Housing | 038-0290 |
| 29 | 038-0383 | Bridgeport Power Feed Motor (New) | Bridgeport Power Feed Motor (New) | 038-0383 |
| 30 | 038-0279 | Bridgeport Power Feed Motor End Cap | Bridgeport Power Feed Motor End Cap | 038-0279 |
| 31 | 012-0060 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 012-0060 |
| 32 | 038-0219 | Bridgeport Power Feed Spring | Bridgeport Power Feed Spring | 038-0219 |
| 33 | 038-0223 | Bridgeport Power Feed Clutch Arm Spring Pin | Bridgeport Power Feed Clutch Arm Spring Pin | 038-0223 |
| 34 | 038-0226 | Bridgeport Power Feed Clutch Arm Detent Roller | Bridgeport Power Feed Clutch Arm Detent Roller | 038-0226 |
| 35 | 038-0225 | Bridgeport Power Feed Detent Roller Screw | Bridgeport Power Feed Detent Roller Screw | 038-0225 |
| 36 | 038-0222 | Bridgeport Power Feed Clutch Arm Spacer | Bridgeport Power Feed Clutch Arm Spacer | 038-0222 |
| 37 | 015-0018 | Bridgeport Power Feed Hex Nut | Bridgeport Power Feed Hex Nut | 015-0018 |
| 38 | 038-0149 | Bridgeport Power Feed Washer | Bridgeport Power Feed Washer | 038-0149 |
| 39 | 038-0221 | Bridgeport Power Feed Clutch Arm | Bridgeport Power Feed Clutch Arm | 038-0221 |
| 40 | 038-0150 | Bridgeport Power Feed Cam Follower | Bridgeport Power Feed Cam Follower | 038-0150 |
| 41 | 038-0224 | Bridgeport Power Feed Clutch Arm Pivot Screw | Bridgeport Power Feed Clutch Arm Pivot Screw | 038-0224 |
| 42 | 015-0017 | Bridgeport Power Feed Lock Nut | Bridgeport Power Feed Lock Nut | 015-0017 |
| 43 | 038-0158 | Bridgeport Power Feed Spacer | Bridgeport Power Feed Spacer | 038-0158 |
| 44 | 012-0139 | Bridgeport Power Feed Phillips Head Machine Screw | Bridgeport Power Feed Phillips Head Machine Screw | 012-0139 |
| 45 | 015-0040 | Bridgeport Power Feed Hex Nut | Bridgeport Power Feed Hex Nut | 015-0040 |
| 46 | 038-0156 | Bridgeport Power Feed Washer | Bridgeport Power Feed Washer | 038-0156 |
| 47 | 012-0138 | Bridgeport Power Feed Round Head Machine Screw | Bridgeport Power Feed Round Head Machine Screw | 012-0138 |
| 48 | 038-0294 | Bridgeport Power Feed Switch Mounting Housing | Bridgeport Power Feed Switch Mounting Housing | 038-0294 |
| 49 | 038-0289 | Bridgeport Power Feed Limit Switch | Bridgeport Power Feed Limit Switch | 038-0289 |
| 50 | 038-0293 | Bridgeport Power Feed Switch Actuator Pin | Bridgeport Power Feed Switch Actuator Pin | 038-0293 |
| 51 | 038-0292 | Bridgeport Power Feed Switch Mounting Plate | Bridgeport Power Feed Switch Mounting Plate | 038-0292 |
| 52 | 038-0162 | Bridgeport Power Feed Bronze Bushing | Bridgeport Power Feed Bronze Bushing | 038-0162 |
| 53 | 038-0161 | Bridgeport Power Feed Shaft Seal | Bridgeport Power Feed Shaft Seal | 038-0161 |
| 54 | 038-0172 | Bridgeport Power Feed Cover Gasket | Bridgeport Power Feed Cover Gasket | 038-0172 |
| 55 | 038-0241 | Bridgeport Power Feed Detent Pin | Bridgeport Power Feed Detent Pin | 038-0241 |
| 56 | 038-0240 | Bridgeport Power Feed Compression Spring | Bridgeport Power Feed Compression Spring | 038-0240 |
| 57 | 012-0136 | Bridgeport Power Feed Socket Head Cap Screw | Bridgeport Power Feed Socket Head Cap Screw | 012-0136 |
| 58 | 038-0243 | Bridgeport Power Feed Power Feed Cover | Bridgeport Power Feed Power Feed Cover | 038-0243 |
| 59 | 038-0165 | Bridgeport Power Feed Oil Sight Glass | Bridgeport Power Feed Oil Sight Glass | 038-0165 |
| Part Number | Part Name | Part Link |
|---|---|---|
| 038-0281 | Bridgeport Power Feed Motor Brush | Bridgeport Power Feed Motor Brush (Set of 2) | 038-0281 |
