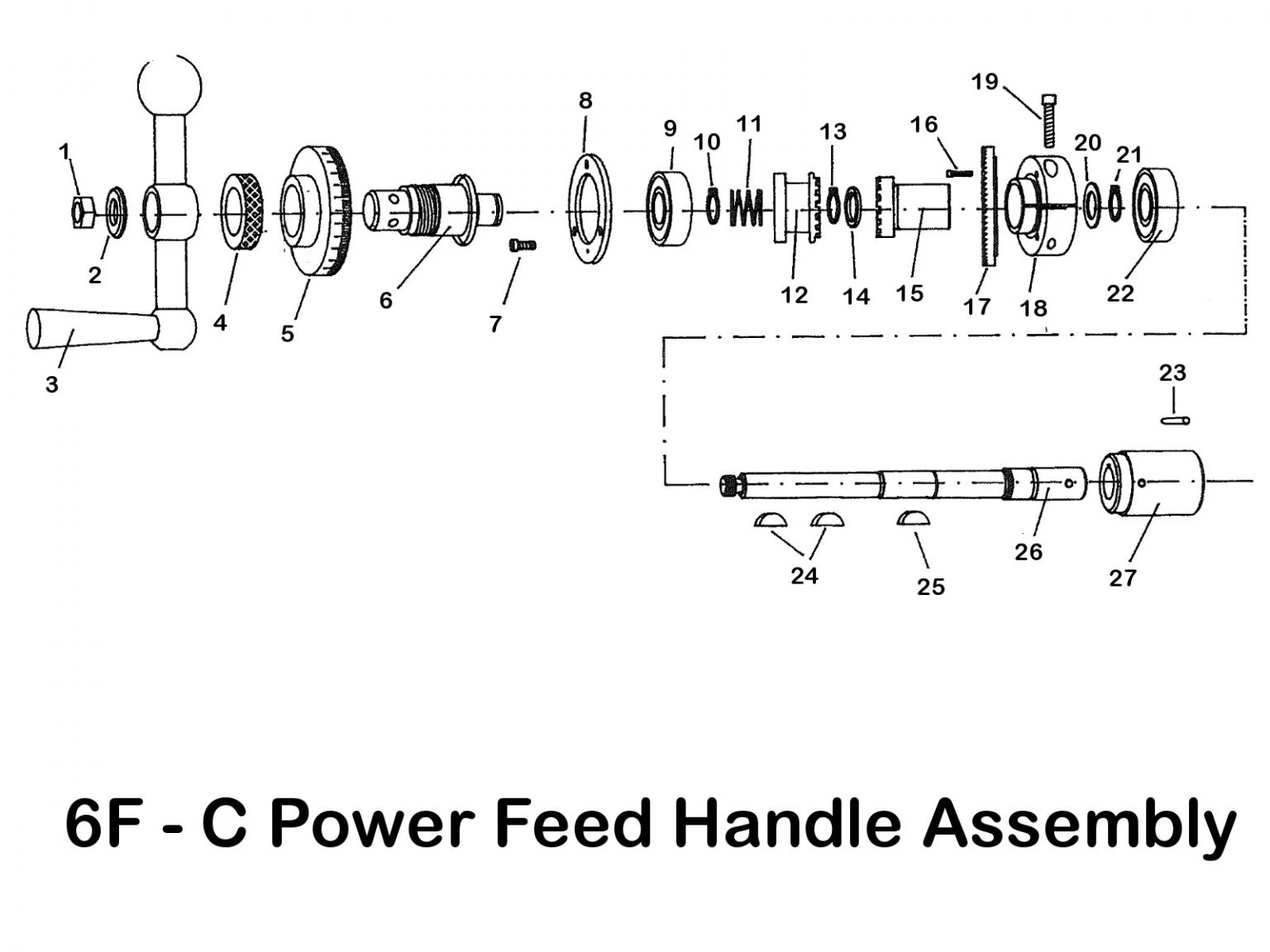

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.
| 1 | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 1166 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1166 |
| 2 | 038-0155 | Bridgeport Power Feed Washer | Bridgeport Power Feed Washer | 038-0155 |
| 3 | 038-0237 | Bridgeport Power Feed Handle Assembly | Bridgeport Power Feed Handle Assembly | 038-0237 |
| 4 | 1168 | Bridgeport Dial Lock Nut | Bridgeport Dial Lock Nut | 1168 |
| 5 | 1169 | Bridgeport Dial with 200 Graduations | Bridgeport Dial with 200 Graduations | 1169 |
| 6 | 038-0238 | Bridgeport Power Feed Dial Holder | Bridgeport Power Feed Dial Holder | 038-0238 |
| 7 | 012-0143 | Bridgeport Power Feed Socket Head Cap Screw | Bridgeport Power Feed Socket Head Cap Screw | 012-0143 |
| 8 | 038-0131 | Bridgeport Power Feed Take – Up Cap | Bridgeport Power Feed Take – Up Cap | 038-0131 |
| 9 | 7008 | Bearing | Bearing | 7008 |
| 10 | 038-0134 | Bridgeport Power Feed Retaining Ring | Bridgeport Power Feed Retaining Ring | 038-0134 |
| 11 | 038-0239 | Bridgeport Power Feed Clutch Spring | Bridgeport Power Feed Clutch Spring | 038-0239 |
| 12 | 038-0136 | Bridgeport Power Feed Driven Clutch | Bridgeport Power Feed Driven Clutch | 038-0136 |
| 13 | 038-0137 | Bridgeport Power Feed Retaining Ring | Bridgeport Power Feed Retaining Ring | 038-0137 |
| 14 | 038-0138 | Bridgeport Power Feed Thrust Bearing | Bridgeport Power Feed Thrust Bearing | 038-0138 |
| 15 | 038-0139 | Bridgeport Power Feed Driver Clutch Assembly | Bridgeport Power Feed Driver Clutch Assembly | 038-0139 |
| 16 | 012-0141 | Bridgeport Power Feed Socket Head Cap Screw | Bridgeport Power Feed Socket Head Cap Screw | 012-0141 |
| 17 | 038-0186 | Bridgeport Power Feed Drive Shaft Gear (Standard Torque) | Bridgeport Power Feed Socket Head Cap Screw | 012-0141 |
| 18 | 038-0142 | Bridgeport Power Feed Gear Hub | Bridgeport Power Feed Gear Hub | 038-0142 |
| 19 | 012-0142 | Bridgeport Power Feed Socket Head Cap Screw | Bridgeport Power Feed Socket Head Cap Screw | 012-0142 |
| 20 | 038-0144 | Bridgeport Power Feed Thrust Washer | Bridgeport Power Feed Thrust Washer | 038-0144 |
| 21 | 038-0134 | Bridgeport Power Feed Retaining Ring | Bridgeport Power Feed Retaining Ring | 038-0134 |
| 22 | 7008 | Bearing | Bearing | 7008 |
| 23 | 013-0065 | Bridgeport Power Feed Taper Pin | Bridgeport Power Feed Taper Pin | 013-0065 |
| 24 | 1179 | Bridgeport Key | Bridgeport Key | 1179 |
| 25 | 017-0040 | Bridgeport Power Feed Key | Bridgeport Power Feed Key | 017-0040 |
| 26 | 038-0147 | Bridgeport Power Feed Drive Shaft | Bridgeport Power Feed Drive Shaft | 038-0147 |
| 27 | 038-0174 | Bridgeport Power Feed Coupling | Bridgeport Power Feed Coupling | 038-0174 |
