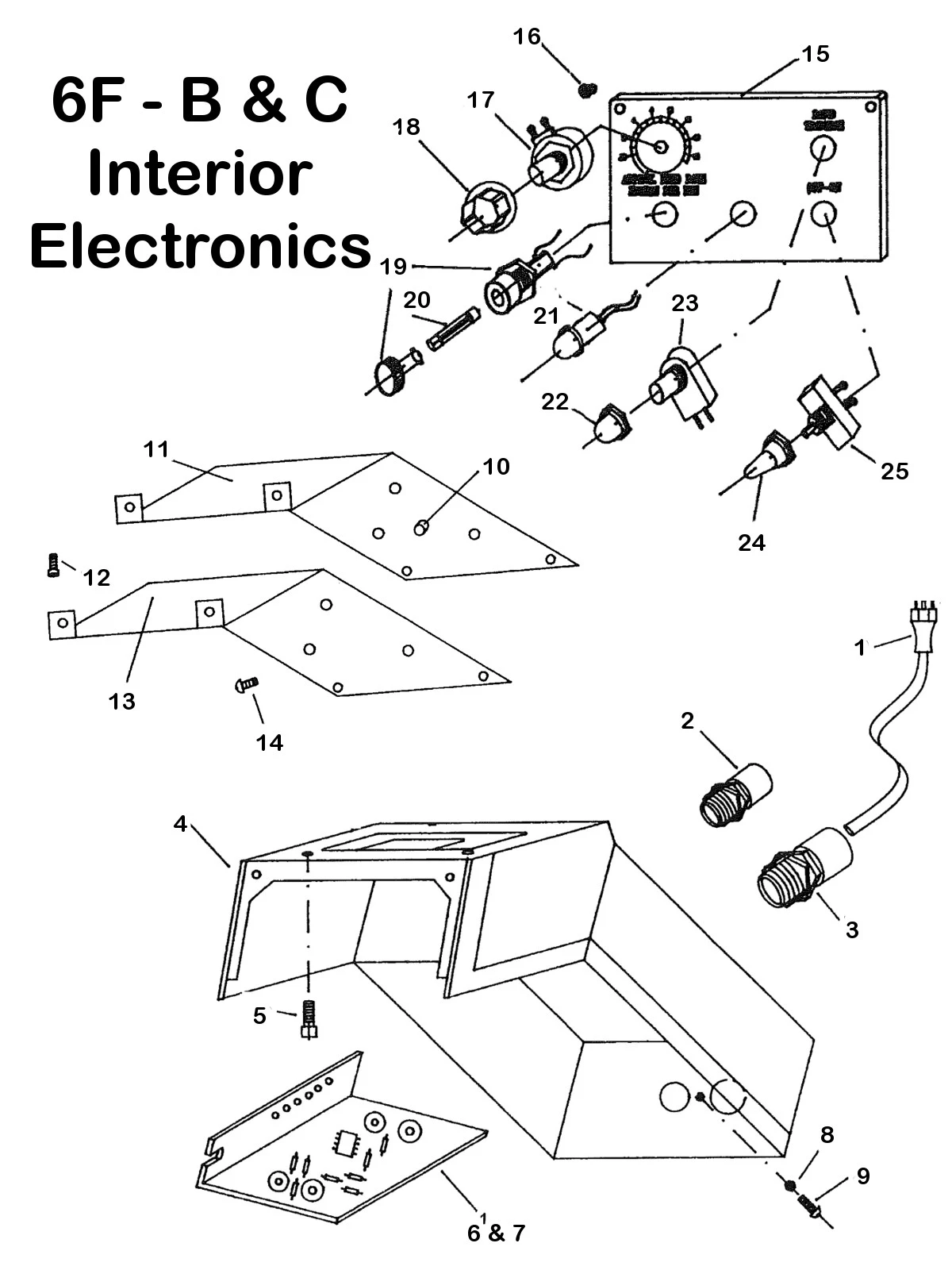

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 038-0269 | Bridgeport Power Feed Power Cord | Bridgeport Power Feed Power Cord | 038-0269 |
| 2 | 038-0268 | Bridgeport Power Feed Cord Grip | Bridgeport Power Feed Cord Grip | 038-0268 |
| 3 | 038-0274 | Bridgeport Power Feed Grip Cord | Bridgeport Power Feed Grip Cord | 038-0274 |
| 4 | 038-0252 | Bridgeport Power Feed Control Box Cover Plate | Bridgeport Power Feed Control Box Cover Plate | 038-0252 |
| 5 | 038-0275 | Bridgeport Power Feed Socket Head Cap Screw | Bridgeport Power Feed Socket Head Cap Screw | 038-0275 |
| 6 | 038-0217 | Bridgeport Power Feed Circuit Board for 6F Power Feed (With Upgrade Kit) | Bridgeport Power Feed Circuit Board for 6F Power Feed (With Upgrade Kit) | 038-0217 |
| 7 | 038-0217 | Bridgeport Power Feed Circuit Board for 6F Power Feed (With Upgrade Kit) | Bridgeport Power Feed Circuit Board for 6F Power Feed (With Upgrade Kit) | 038-0217 |
| 8 | 038-0270 | Bridgeport Power Feed Hex Nut | Bridgeport Power Feed Hex Nut | 038-0270 |
| 9 | 038-0271 | Bridgeport Power Feed Round Head Machine Screw | Bridgeport Power Feed Round Head Machine Screw | 038-0271 |
| 10 | 038-0158 | Bridgeport Power Feed Spacer | Bridgeport Power Feed Spacer | 038-0158 |
| 11 | 038-0273 | Bridgeport Power Feed Gasket Cover | Bridgeport Power Feed Gasket Cover | 038-0273 |
| 12 | 038-0276 | Bridgeport Power Feed Machine Screw | Bridgeport Power Feed Machine Screw | 038-0276 |
| 13 | 038-0272 | Bridgeport Power Feed Bottom Cover | Bridgeport Power Feed Bottom Cover | 038-0272 |
| 14 | 038-0276 | Bridgeport Power Feed Machine Screw | Bridgeport Power Feed Machine Screw | 038-0276 |
| 15 | 038-0251 | Bridgeport Power Feed Control Box Cover Plate | Bridgeport Power Feed Control Box Cover Plate | 038-0251 |
| 16 | 038-0264 | Bridgeport Power Feed Cap Screw | Bridgeport Power Feed Cap Screw | 038-0264 |
| 17 | 038-0259 | Bridgeport Power Feed Potentiometer | Bridgeport Power Feed Potentiometer | 038-0259 |
| 18 | 038-0253 | Bridgeport Power Feed Potentiometer Knob | Bridgeport Power Feed Potentiometer Knob | 038-0253 |
| 19 | 038-0260 | Bridgeport Power Feed Fuse Socket | Bridgeport Power Feed Fuse Socket | 038-0260 |
| 20 | 038-0254 | Bridgeport Power Feed Fuse | Bridgeport Power Feed Fuse | 038-0254 |
| 21 | 038-0255 | Bridgeport Power Feed Red Indicator Light | Bridgeport Power Feed Red Indicator Light | 038-0255 |
| 22 | 038-0258 | Bridgeport Power Feed Boot For Rapid Traverse | Bridgeport Power Feed Boot For Rapid Traverse | 038-0258 |
| 23 | 038-0257 | Bridgeport Power Feed Rapid Traverse Button |
Bridgeport Power Feed Rapid Traverse Button | 038-0257 |
| 24 | 038-0267 | Bridgeport Power Feed Boot On/Off Toggle | Bridgeport Power Feed Boot On/Off Toggle | 038-0267 |
| 25 | 038-0256 | Bridgeport Power Feed On – Off Toggle Switch | Bridgeport Power Feed On – Off Toggle Switch | 038-0256 |
