8F Power Feed Interior – Breakout Page

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.

All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.

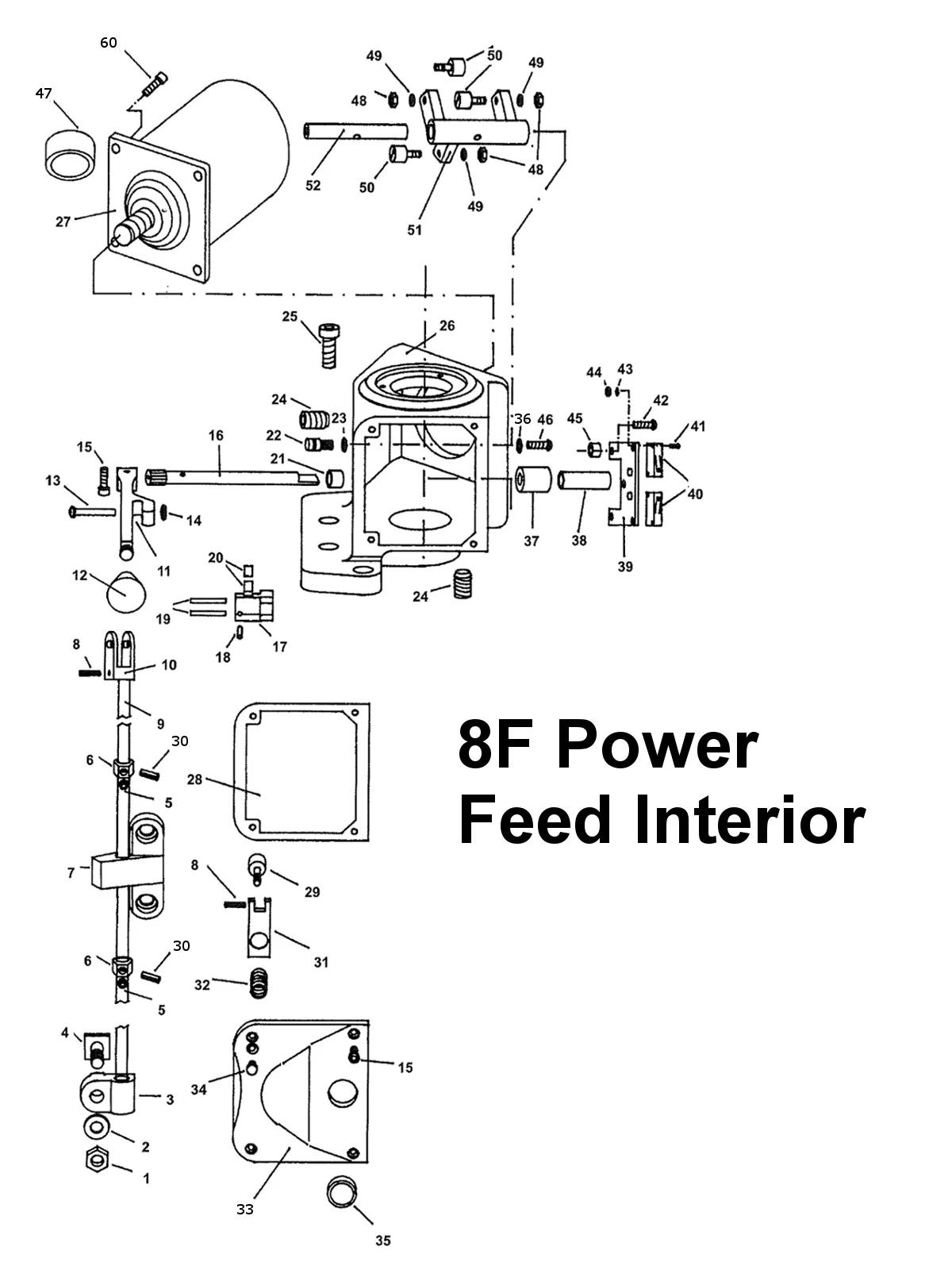

8F POWER FEED INTERIOR BREAKDOWN

8F Power Feed Interior Breakdown

8F Power Feed Interior Breakdown
1205 – Hex Nut 038-0102 – Washer 038-0104 – Stop Rod Guide 1203 – Stop Piece T-Bolt 1307 – Socket Set Screw 038-0107 – Stop Collar 038-0108 – Stop Rod Bracket 013-0058 – Roll Pin 038-0109 – Stop Rod 038-0105 – Rod Fork 038-0116 – Control Lever 038-0114 – Black Knob 038-0113 – Fork Pin 038-0115 – Retaining Ring 012-0136 – Socket Head Cap Screw 038-0117 – Clutch Shaft 038-0176 – CAM 013-0058 – Roll Pin 013-0064 – Roll Pin 038-0178 – CAM Roller 038-0118 – Bronze Bushing 038-0122 – Shoulder Pivot 1038-26 – O-Ring 038-0119 – Pipe Plug 1175 – Socket Head Cap Screw 038-0166 – Main Housing 038-0383 – Motor 038-0172 – Cover Gasket 038-0168 – Pivot CAM 038-0278 – Roll Pin 038-0170 – Follower, Cam Lever 038-0169 – Spring 038-0167 – Cover Power Feed 038-0164 – Allen Nut 038-0165 – Oil Sight Glass 038-0160 – Washer with Internal Screw 038-0161 – Shaft Seal 038-0162 – Bronze Bushing 038-0163 – Switch Plate 038-0154 – Limit Switch 012-0138 – Round Head Machine Screw 012-0139 – Phillips Head Machine Screw 038-0156 – Washer 015-0040 – Hex Nut 038-0158 – Spacer 012-0149 – Round Head Machine Screw 038-0279 – Motor End Cap 015-0018 – Hex Nut 038-0149 – Washer 038-0150 – Cam Follower 038-0151 – Shifting Fork 038-0152 – Pivot Shaft 1307 – Socket Set Screw 038-0107 – Stop Collar 013-0058 – Roll Pin 012-0136 – Socket Head Cap Screw 015-0018 – Hex Nut 038-0149 – Washer 038-0150 – Cam Follower 012-0060 - Socket Head Cap Screw 038-0149 - Washer 038-0276 - Roll Pin 038-0119 - Pipe Plug

038-0119 - Pipe Plug

Parts Breakdown

Number Part Number Part Name Part Link
1 1205 Bridgeport Hex Nut Bridgeport Hex Nut | 1205
2 038-0102 Bridgeport Power Feed Washer Bridgeport Power Feed Washer | 038-0102
3 038-0104 Bridgeport Power Feed Stop Rod Guide Bridgeport Power Feed Stop Rod Guide | 038-0104
4 1203 Bridgeport Stop Piece T-Bolt Bridgeport Stop Piece T-Bolt | 1203
5 1307 Bridgeport Socket Set Screw Bridgeport Socket Set Screw | 1307
6 038-0107 Bridgeport Power Feed Stop Collar Bridgeport Power Feed Stop Collar | 038-0107
7 038-0108 Bridgeport Power Feed Stop Rod Bracket Bridgeport Power Feed Stop Rod Bracket | 038-0108
8 013-0058 Bridgeport Power Feed Roll Pin Bridgeport Power Feed Roll Pin | 013-0058
9 038-0109 | 038-0110 Bridgeport Power Feed Stop Rod Bridgeport Power Feed Stop Rod | 038-0109 | 038-0110
10 038-0105 Bridgeport Power Feed Rod Fork Bridgeport Power Feed Rod Fork | 038-0105
11 038-0116 Bridgeport Power Feed Control Lever Bridgeport Power Feed Control Lever | 038-0116
12 038-0114 Bridgeport Power Feed Black Knob Bridgeport Power Feed Black Knob | 038-0114
13 038-0113 Bridgeport Power Feed Fork Pin Bridgeport Power Feed Fork Pin | 038-0113
14 038-0115 Bridgeport Power Feed Retaining Ring Bridgeport Power Feed Retaining Ring | 038-0115
15 012-0136 Bridgeport Power Feed Socket Head Cap Screw Bridgeport Power Feed Socket Head Cap Screw | 012-0136
16 038-0117 Bridgeport Power Feed Clutch Shaft Bridgeport Power Feed Clutch Shaft | 038-0117
17 038-0176 Bridgeport Power Feed CAM Bridgeport Power Feed CAM | 038-0176
18 013-0058 Bridgeport Power Feed Roll Pin Bridgeport Power Feed CAM Retaining Dowel Pin | 013-0055
19 013-0064 Bridgeport Power Feed Roll Pin Bridgeport Power Feed Roll Pin | 013-0064
20 038-0178 Bridgeport Power Feed CAM Roller Bridgeport Power Feed CAM Roller | 038-0178
21 038-0118 Bridgeport Power Feed Bronze Bushing Bridgeport Power Feed Bronze Bushing | 038-0118
22 038-0122 Bridgeport Power Feed Shoulder Pivot Bridgeport Power Feed Shoulder Pivot | 038-0122
23 1038-26 Bridgeport Power Feed O – Ring Bridgeport Power Feed O – Ring | 1038-26
24 038-0119 Bridgeport Power Feed Pipe Plug Bridgeport Power Feed Pipe Plug | 038-0119
25 1175 Bridgeport Socket Head Cap Screw Bridgeport Socket Head Cap Screw | 1175
26 038-0166 Bridgeport Power Feed Main Housing Bridgeport Power Feed Main Housing | 038-0166
27 038-0383 Bridgeport Power Feed Motor (New) Bridgeport Power Feed Motor (New) | 038-0383
28 038-0172 Bridgeport Power Feed Cover Gasket Bridgeport Power Feed Cover Gasket | 038-0172
29 038-0168 Bridgeport Power Feed Pivot CAM Bridgeport Power Feed Pivot CAM | 038-0168
30 038-0278 Bridgeport Power Feed Roll Pin Bridgeport Power Feed Roll Pin | 038-0278
31 038-0170 Bridgeport Power Feed Follower, Cam Lever Bridgeport Power Feed Follower, Cam Lever | 038-0170
32 038-0169 Bridgeport Power Feed Spring Bridgeport Power Feed Spring | 038-0169
33 038-0167 Bridgeport Power Feed Cover Power Feed Bridgeport Power Feed Cover Power Feed | 038-0167
34 038-0164 Bridgeport Power Feed Allen Nut Bridgeport Power Feed Allen Nut | 038-0164
35 038-0165 Bridgeport Power Feed Oil Sight Glass Bridgeport Power Feed Oil Sight Glass | 038-0165
36 038-0160 Bridgeport Power Feed Washer with Internal Screw Bridgeport Power Feed Washer with Internal Screw | 038-0160
37 038-0161 Bridgeport Power Feed Shaft Seal Bridgeport Power Feed Shaft Seal | 038-0161
38 038-0162 Bridgeport Power Feed Bronze Bushing Bridgeport Power Feed Bronze Bushing | 038-0162
39 038-0163 Bridgeport Power Feed Switch Plate Bridgeport Power Feed Switch Plate | 038-0163
40 038-0154 Bridgeport Power Feed Limit Switch Bridgeport Power Feed Limit Switch | 038-0154
41 012-0138 Bridgeport Power Feed Round Head Machine Screw Bridgeport Power Feed Round Head Machine Screw | 012-0138
42 012-0139 Bridgeport Power Feed Phillips Head Machine Screw Bridgeport Power Feed Phillips Head Machine Screw | 012-0139
43 038-0156 Bridgeport Power Feed Washer Bridgeport Power Feed Washer | 038-0156
44 015-0040 Bridgeport Power Feed Hex Nut Bridgeport Power Feed Hex Nut | 015-0040
45 038-0158 Bridgeport Power Feed Spacer Bridgeport Power Feed Spacer | 038-0158
46 012-0149 Bridgeport Power Feed Round Head Machine Screw Bridgeport Power Feed Round Head Machine Screw | 012-0149
47 038-0279 Bridgeport Power Feed Motor End Cap Bridgeport Power Feed Motor End Cap | 038-0279
48 015-0018 Bridgeport Power Feed Hex Nut Bridgeport Power Feed Hex Nut | 015-0018
49 038-0149 Bridgeport Power Feed Washer Bridgeport Power Feed Washer | 038-0149
50 038-0150 Bridgeport Power Feed Cam Follower Bridgeport Power Feed Cam Follower | 038-0150
51 038-0151 Bridgeport Power Feed Shifting Fork Bridgeport Power Feed Shifting Fork | 038-0151
52 038-0152 Bridgeport Power Feed Pivot Shaft Bridgeport Power Feed Pivot Shaft | 038-0152
60 012-0060 Bridgeport Socket Head Cap Screw Bridgeport Socket Head Cap Screw | 012-0060
