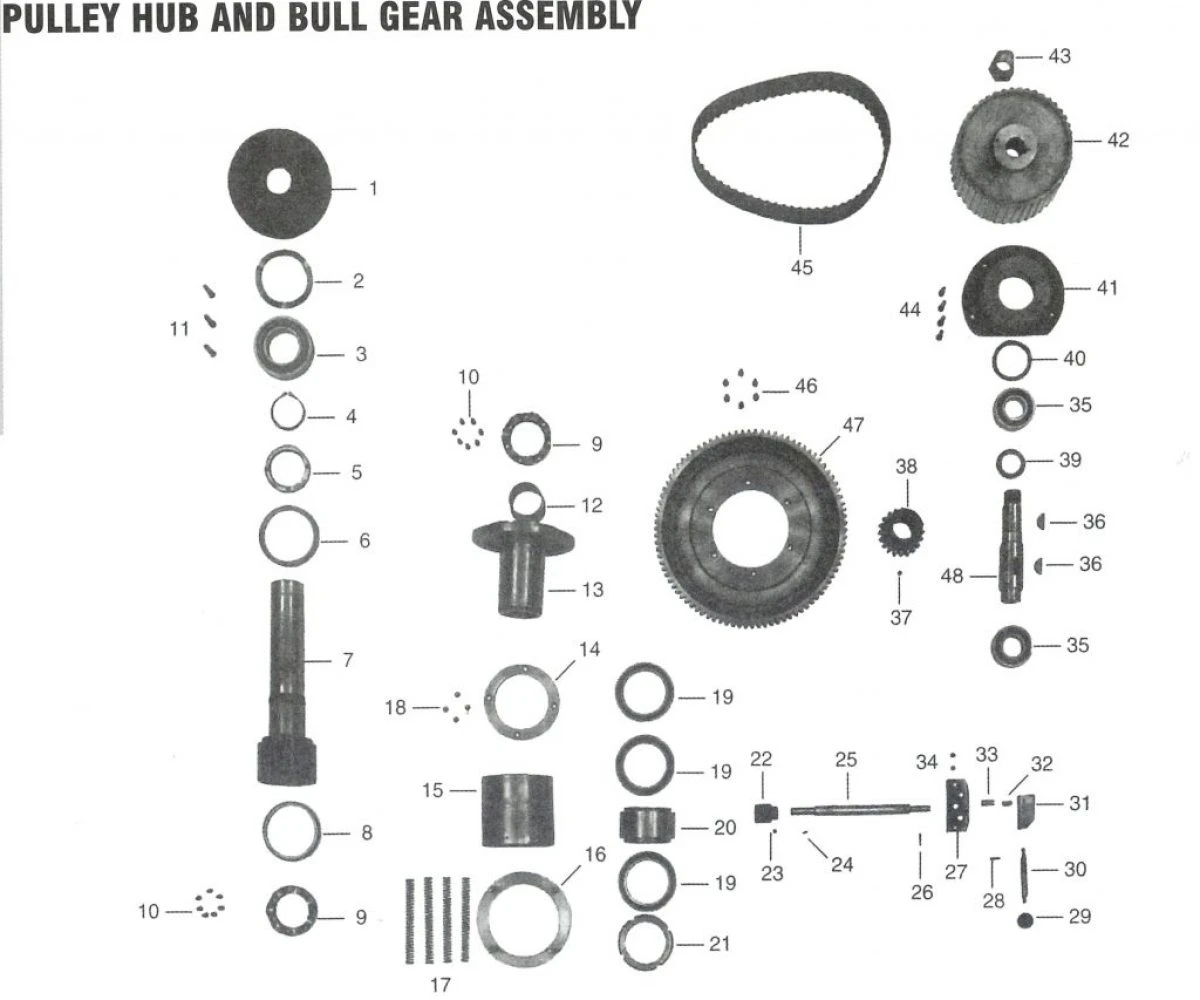

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.
NOTE: ALL PRICES AND AVAILABILITY ON SERIES II PARTS ARE SUBJECT TaO CHANGE WITHOUT NOTICE & SAID CHANGES MAY NOT BE REFLECTED IN THE PRICES LISTED BELOW. CALL 1-800-285-5271 FOR CURRENT PRICE & AVAILABILITY. WE HAVE THE RIGHT TO CANCEL ANY ORDERS NOT REFLECTING CURRENT PRICE OR AVAILABILITY.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 037-0654 | Bridgeport Series II Top Bearing Cap (Obsolete) | Bridgeport Series II Top Bearing Cap (Obsolete) | 037-0654 |
| 2 | 019-0039 | Bridgeport Series II Wave Spring Washer (Obsolete) | Bridgeport Series II Wave Spring Washer (Obsolete) | 019-0039 |
| 3 | 018-0036 | Bridgeport Series II Bearing | Bridgeport Series II Bearing | 018-0036 |
| 4 | 016-0050 | Bridgeport Series II Snap Ring (Obsolete) | Bridgeport Series II Snap Ring (Obsolete) | 016-0050 |
| 5 | 037-0555 | Bridgeport Series II Lock Nut (Obsolete) | Bridgeport Series II Lock Nut (Obsolete) | 037-0555 |
| 6 | 037-0565 | Bridgeport Series II Top Pulley Flange (Obsolete) | Bridgeport Series II Top Pulley Flange (Obsolete) | 037-0565 |
| 7 | 037-0557 | Bridgeport Series II Pulley Hub (Obsolete) | Bridgeport Series II Pulley Hub (Obsolete) | 037-0557 |
| 8 | 037-0564 | Bridgeport Series II Bottom Pulley Flange (Obsolete) | Bridgeport Series II Bottom Pulley Flange (Obsolete) | 037-0564 |
| 9 | 037-0562 | Bridgeport Series II Drive Clutches (Obsolete) | Bridgeport Series II Drive Clutches (Obsolete)| 037-0562 |
| 10 | 1502 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1502 |
| 11 | 012-0013 | Bridgeport Series II Socket Head Cap Screw (Obsolete) | Bridgeport Series II Socket Head Cap Screw (Obsolete) | 012-0013 |
| 12 | 037-0589 | Bridgeport Series II Oil Guard (Obsolete) | Bridgeport Series II Oil Guard (Obsolete) | 037-0589 |
| 13 | 037-0587 | Bridgeport Series II Gear Hub (Obsolete) | Bridgeport Series II Gear Hub (Obsolete) | 037-0587 |
| 14 | 037-0611 | Bridgeport Series II Bearing Sleeve Flange (Obsolete) | Bridgeport Series II Bearing Sleeve Flange (Obsolete) | 037-0611 |
| 15 | 037-0611 | Bridgeport Series II Bearing Sleeve Flange (Obsolete) | Bridgeport Series II Bearing Sleeve Flange (Obsolete) | 037-0611 |
| 16 | 037-0655 | Bridgeport Series II Sleeve Washer with Pins (Obsolete) | Bridgeport Series II Sleeve Washer with Pins (Obsolete) | 037-0655 |
| 17 | 019-0034 | Bridgeport Series II Spring (Obsolete) | Bridgeport Series II Spring (Obsolete) | 019-0034 |
| 18 | 012-0084 | Bridgeport Series II Screw (Obsolete) | Bridgeport Series II Screw (Obsolete) | 012-0084 |
| 19 | 018-0037 | Bridgeport Series II Bearings, Set of 3 | Bridgeport Series II Bearings, Set of 3 | 018-0037 |
| 20 | 037-0599 | Bridgeport Series II Bearing Spacer (Obsolete) | Bridgeport Series II Bearing Spacer (Obsolete) | 037-0599 |
| 21 | 037-0588 | Bridgeport Series II Bearing Lock Nut (Obsolete) | Bridgeport Series II Bearing Lock Nut (Obsolete) | 037-0588 |
| 22 | 037-0608 | Bridgeport Series II Pinion Gear (Obsolete) | Bridgeport Series II Pinion Gear (Obsolete) | 037-0608 |
| 23 | 012-0085 | Bridgeport Series II Set Screw (Obsolete) | Bridgeport 1HP Deluxe Rebuild Kit | RBK-DLXJ1 |
| 24 | 017-0037 | Bridgeport Series II Woodruff Key (Obsolete) | Bridgeport Series II Woodruff Key (Obsolete) | 017-0037 |
| 25 | 037-0609 | Bridgeport Series II Bull Gear Shifting Rod (Obsolete) | Bridgeport Series II Bull Gear Shifting Rod (Obsolete) | 037-0609 |
| 26 | 1295 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1295 |
| 27 | 037-0569 | Bridgeport Series II Hi – Low Detent Plate (Obsolete) | Bridgeport Series II Hi – Low Detent Plate (Obsolete) | 037-0569 |
| 28 | 1522 | Bridgeport Roll Pin | Bridgeport Roll Pin | 1522 |
| 29 | 1259 |
Bridgeport Plastic Ball | Bridgeport Plastic Ball | 1259 |
| 30 | 037-0559 | Bridgeport Series II Hi – Low Shift Crank (Obsolete) | Bridgeport Series II Hi – Low Shift Crank (Obsolete) | 037-0559 |
| 31 | 037-0561 | Bridgeport Series II Hi – Low Pinion Block (Obsolete) | Bridgeport Series II Hi – Low Pinion Block (Obsolete)| 037-0561 |
| 32 | 019-0035 | Bridgeport Series II Plunger Spring (Obsolete) | Bridgeport Series II Plunger Spring (Obsolete) | 019-0035 |
| 33 | 037-0560 | Bridgeport Series II Hi – Low Plunger (Obsolete) | Bridgeport Series II Hi – Low Plunger (Obsolete)| 037-0560 |
| 34 | 1326 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1326 |
| 35 | 1547-02 | Bridgeport Bearing | Bridgeport Bearing | 1547-02 |
| 36 | 017-0036 | Bridgeport Series II Woodruff Key (Obsolete) | Bridgeport Series II Woodruff Key (Obsolete)| 017-0036 |
| 37 | 012-0078 | Bridgeport Series II Set Screw (Obsolete) | Bridgeport Series II Woodruff Key (Obsolete)| 017-0036 |
| 38 | 037-0658 | Bridgeport Series II Bull Gear & Pinion Gear Set (Obsolete) | Bridgeport Series II Bull Gear & Pinion Gear Set (Obsolete) | 037-0658 |
| 39 | 037-0659 | Bridgeport Series II Bearing Spacer (Obsolete) | Bridgeport Series II Bearing Spacer (Obsolete) | 037-0659 |
| 40 | 019-0038 | Bridgeport Series II Wave Spring Washer (Obsolete) | Bridgeport Series II Wave Spring Washer (Obsolete) | 019-0038 |
| 41 | 038-0660 | Bridgeport Series II Bearing Cap (Obsolete) | Bridgeport Series II Bearing Cap (Obsolete) | 038-0660 |
| 42 | 037-0603 | Bridgeport Series II Timing Pulley (Obsolete) | Bridgeport Series II Timing Pulley (Obsolete)| 037-0603 |
| 43 | 015-0015 | Bridgeport Series II Hex Nut (Obsolete) | Bridgeport Series II Hex Nut (Obsolete) | 015-0015 |
| 44 | 012-0060 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 012-0060 |
| 45 | 025-0006 | Bridgeport Series II Timing Belt | Bridgeport Series II Timing Belt | 025-0006 |
| 46 | 012-0087 | Bridgeport Series II Socket Head Cap Screw (Obsolete) | Bridgeport Series II Socket Head Cap Screw (Obsolete) | 012-0087 |
| 47 | 037-0661 | Bridgeport Series II Bull Gear and Pinion Gear Set (Obsolete) | Bridgeport Series II Bull Gear and Pinion Gear Set (Obsolete) | 037-0661 |
| 48 | 037-0695 | Bridgeport Series II Bull Gear Pinion Shaft (Obsolete) | Bridgeport Series II Bull Gear Pinion Shaft (Obsolete) | 037-0695 |
| Part Number | Part Name | Part Link |
|---|---|---|
| RBK-40 | Bridgeport Series II Rebuild Kit | Bridgeport Series II Rebuild Kit |
