Maxi-Torque Rite Parts Diagram

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.

This diagram is interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part, and the part number, or if the part is obsolete.

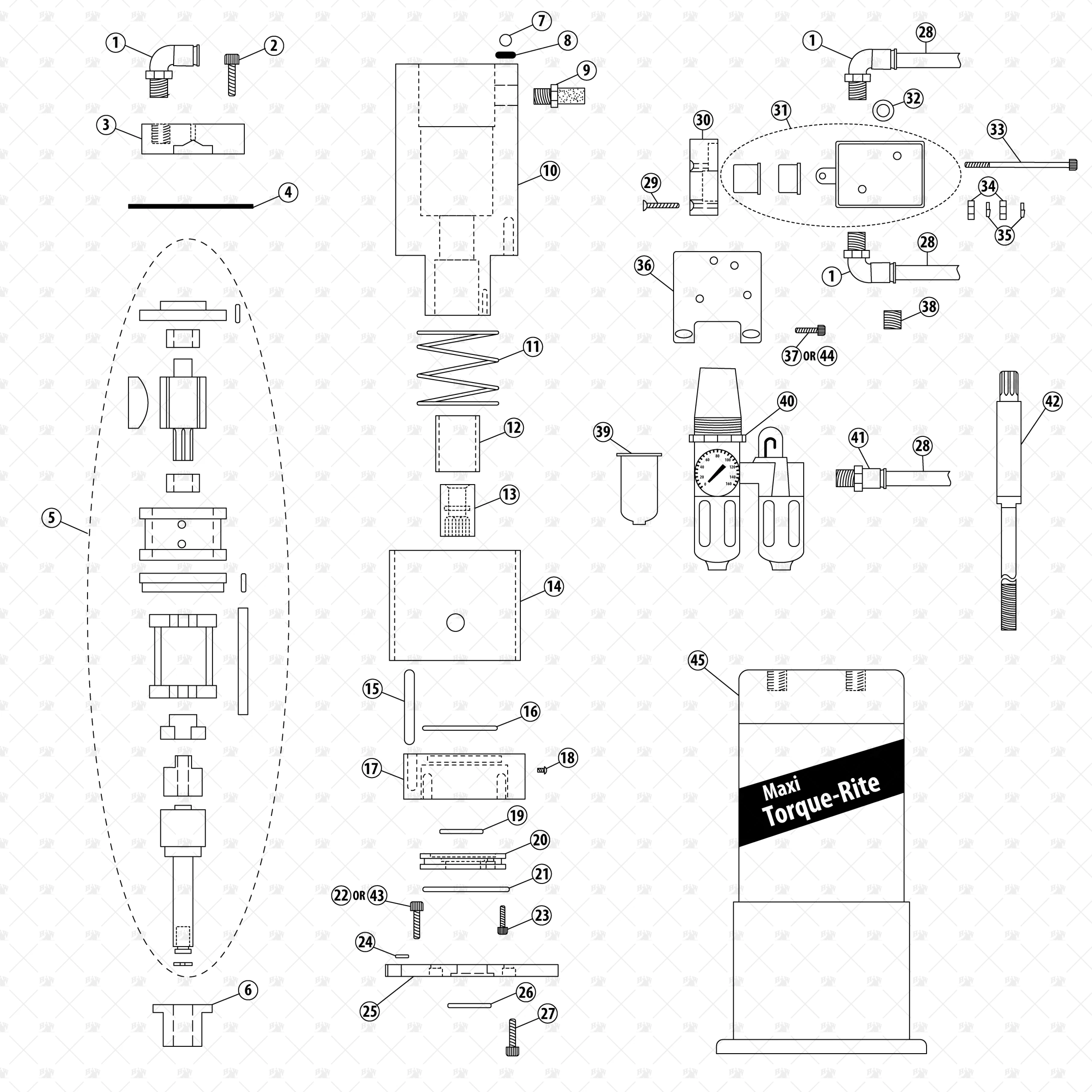

Maxi-Torque Rite Breakdown

Maxi-Torque Rite Breakdown
90 Deg Fitting | K010005 Socket Head Screw | D030006 (Not Available) Shuttle Valve Cap | TR-200 (Contact for P&A) Gasket | TR-202 Air Motor Assembly | TR-275 Anvil Bushing | TR-217 Nylon Ball | A020001 Nylon Washer | D120001 Muffler | K010001 Housing | TR-218 (Contact for P&A) Spring | F010001 Socket Sleeve | TR-219 Socket | TR-220 Housing Guard | TR-221 (Contact for P&A) Dowel Pin | D100001 (Not Available) O-Ring | L010002 Cylinder | TR-222 Rivet | D130001 (Not Available) Thrust Washer | TR-223 Piston | TR-224 O-Ring | L010001 Socket Cap Screw, Standard | D030003 (Not Available) Socket Cap Screw, Metric | D090001 (Not Available) Socket Cap Screw | D030004 (Not Available) 1/4 Lock Washer | D060002 (Not Available) Base Plate | TR-225 Thrust Washer | TR-223 Socket Cap Screw | D030005 (Not Available) 90 Deg Fitting | K010005 3/8" x 10' Tube | K020004 Flat Head Screw | D090003 (Not Available) Face Plate | TR-235 (Contact for P&A) In/ Out Control Assembly | TR-280 O-Ring | L010003 (Not Available) Socket Cap Screw | D030001 (Not Available) #10 Hex Nut | D080001 (Not Available) #10 Lock Washer | D060001 (Not Available) 90 Deg Fitting | K010005 3/8" x 10' Tube | K020004 Pipe Plug | K030001 (Not Available) Control Head Bracket | TR-230 Socket Head Screw, Standard | D030002 (Not Available) Socket Head Screw, Metric | D090002 (Not Available) Replacement Drawbar Filter Regulator Assembly | TR-231 Plastic Bowl | TRPB Straight Fitting | K010006 3/8" x 10' Tube | K020004 Power Head | TR-279

Socket Head Screw | D030006 (Not Available)

Not available

Shuttle Valve Cap | TR-200 (Contact for P&A)

Contact for price and availability: 1-800-285-5271

Housing | TR-218 (Contact for P&A)

Contact for Price and Availability: 1-800-285-5271

Housing Guard | TR-221 (Contact for P&A)

Please contact for price and availability: 1-800-285-5271

Dowel Pin | D100001 (Not Available)

No Longer Available

Rivet | D130001 (Not Available)

No Longer Available

Socket Cap Screw, Standard | D030003 (Not Available)

No Longer Available

Socket Cap Screw, Metric | D090001 (Not Available)

No Longer Available

Socket Cap Screw | D030004 (Not Available)

No Longer Available

1/4 Lock Washer | D060002 (Not Available)

No Longer Available

Socket Cap Screw | D030005 (Not Available)

No Longer Available

Flat Head Screw | D090003 (Not Available)

No Longer Available

Face Plate | TR-235 (Contact for P&A)

Please Contact for Price and Availability: 1-800-285-5271

O-Ring | L010003 (Not Available)

No Longer Available

Socket Cap Screw | D030001 (Not Available)

No Longer Available

#10 Hex Nut | D080001 (Not Available)

No Longer Available

#10 Lock Washer | D060001 (Not Available)

No Longer Available

Pipe Plug | K030001 (Not Available)

No Longer Available

Socket Head Screw, Standard | D030002 (Not Available)

No Longer Avaialble

Socket Head Screw, Metric | D090002 (Not Available)

No Longer Available

Parts Breakdown

Number Part Number Part Name Part Link
1 K010005 90 deg Fitting 90 deg Fitting | K010005
2 D030006 Socket Head Screw Socket Head Screw | D030006 (Not Available)
3 TR-200 Shuttle Valve Cap Shuttle Valve Cap | TR-200 (Contact for P&A)
4 TR-202 Gasket Gasket | TR-202
5 TR-275 Air Motor Assembly Air Motor Assembly | TR-275
6 TR-217 Anvil Bushing Anvil Bushing | TR-217
7 A020001 Nylon Bushing Nylon Ball | A020001
8 D120001 Nylon Washer Nylon Washer | D120001
9 K010001 Muffler Muffler | K010001
10 TR-218 Housing Housing | TR-218 (Contact for P&A)
11 F010001 Spring Spring | F010001
12 TR-219 Socket Sleeve Socket Sleeve | TR-219
13 TR-220 Socket Socket | TR-220
14 TR-221 Housing Guard Housing Guard | TR-221 (Contact for P&A)
15 D100001 Dowel Pin Dowel Pin | D100001 (Not Available)
16 L010002 O-Ring O-Ring | L010002
17 TR-222 Cylinder Cylinder | TR-222
18 D130001 Rivet Rivet | D130001 (Not Available)
19 TR-223 Thrust Washer Thrust Washer | TR-223
20 TR-224 Piston Piston | TR-224
21 L010001 O-Ring O-Ring | L010001
22 D030003 Socket Cap Screw Socket Cap Screw, Standard | D030003 (Not Available)
23 D30004 Socket Cap Screw Socket Cap Screw | D030004 (Not Available)
24 D060002 1/4 Lock Washer 1/4 Lock Washer | D060002 (Not Available)
25 TR-225 Base Plate Base Plate | TR-225
26 TR-223 Thrust Washer Thrust Washer | TR-223
27 D030005 Socket Cap Screw Socket Cap Screw | D030005 (Not Available)
28 K020004 3/8" x 10' Tube 3/8" x 10' Tube | K020004
29 D090003 Socket Cap Screw Flat Head Screw | D090003 (Not Available)
30 TR-235 Face Plate Face Plate | TR-235 (Contact for P&A)
31 TR-280 In/ Out Control Assy In/ Out Control Assembly | TR-280
32 L010003 O-Ring O-Ring | L010003 (Not Available)
33 D030001 Socket Cap Screw Socket Cap Screw | D030001 (Not Available)
34 D080001 #10 Hex Nut #10 Hex Nut | D080001 (Not Available)
35 D060001 #10 Lock Washer #10 Lock Washer | D060001 (Not Available)
36 TR-230 Control Head Bracket Control Head Bracket | TR-230
37 D030002 Socket Cap Screw Socket Head Screw, Standard | D030002 (Not Available)
38 K030001 Pipe Plug Pipe Plug | K030001 (Not Available)
39 TRPB Plastic Bowl Plastic Bowl | TRPB
40 TR-231 Filter Regulator Assy Filter Regulator Assembly | TR-231
41 K010006 Straight Fitting Straight Fitting | K010006
42 TR- Replacement Drawbars Replacement Drawbar
43 D090001 Socket Cap Screw Socket Cap Screw, Metric | D090001 (Not Available)
44 D090002 Socket Cap Screw Socket Head Screw, Metric | D090002 (Not Available)
45 TR-279 Power Head Power Head | TR-279
