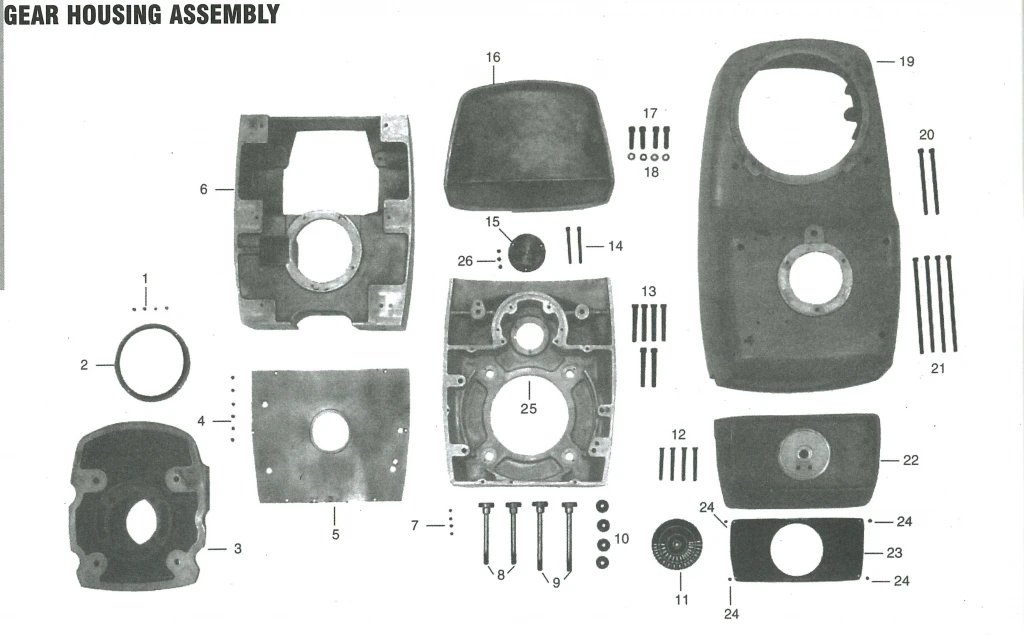

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.
NOTE: ALL PRICES AND AVAILABILITY ON SERIES II PARTS ARE SUBJECT TO CHANGE WITHOUT NOTICE & SAID CHANGES MAY NOT BE REFLECTED IN THE PRICES LISTED BELOW. CALL 1-800-285-5271 FOR CURRENT PRICE & AVAILABILITY. WE HAVE THE RIGHT TO CANCEL ANY ORDERS NOT REFLECTING CURRENT PRICE OR AVAILABILITY.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 1584 | Bridgeport Round Head Machine Screw | Bridgeport Round Head Machine Screw | 1584 |
| 2 | 037-0681 | Bridgeport Series II Grease Guard (Obsolete) | Bridgeport Series II Grease Guard (Obsolete) | 037-0681 |
| 3 | 037-0682 | Bridgeport Series II Fixed Clutch Bracket (Obsolete) | Bridgeport Series II Fixed Clutch Bracket (Obsolete) | 037-0682 |
| 4 | 012-0096 |
Bridgeport Series II Screw (Obsolete) | Bridgeport Series II Screw (Obsolete)| 012-0096 |
| 5 | 037-0683 | Bridgeport Series II Gear Housing Plate (Obsolete) | Bridgeport Series II Gear Housing Plate (Obsolete) | 037-0683 |
| 6 | 037-0684 | Bridgeport Series II Belt Housing Plate (Obsolete) | Bridgeport Series II Belt Housing Plate (Obsolete) | 037-0684 |
| 7 | 1326 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1326 |
| 8 | 037-0685 | Bridgeport Series II Gear Housing Bolt, Short (Obsolete) | Bridgeport Series II Gear Housing Bolt, Short (Obsolete) | 037-0685 |
| 9 | 038-0686 | Bridgeport Series II Gear Housing Bolt , Long (Obsolete) | Bridgeport Series II Gear Housing Bolt , Long (Obsolete) | 038-0686 |
| 10 | 015-0016 | Bridgeport Series II Flange Nut (Obsolete) | Bridgeport Series II Flange Nut (Obsolete) | 015-0016 |
| 11 | 037-0687 | Bridgeport Series II Speed Dial (Obsolete) | Bridgeport Series II Speed Dial (Obsolete)| 037-0687 |
| 12 | 012-0089 | Bridgeport Series II Screw (Obsolete) | Bridgeport Series II Screw (Obsolete)| 012-0089 |
| 13 | 012-0097 | Bridgeport Series II Screw (Obsolete) | Bridgeport Series II Screw (Obsolete) | 012-0097 |
| 14 | 012-0093 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 012-0093 |
| 15 | 037-0688 | Bridgeport Series II Bearing Retainer (Obsolete) | Bridgeport Series II Bearing Retainer (Obsolete) | 037-0688 |
| 16 | 037-0689 | Bridgeport Series II Motor Pulley Cover (Obsolete) | Bridgeport Series II Motor Pulley Cover (Obsolete) | 037-0689 |
| 17 | 012-0098 | Bridgeport Series II Screw (Obsolete) | Bridgeport Series II Screw (Obsolete) | 012-0098 |
| 18 | 1265 | Bridgeport Lock Washer | Bridgeport Lock Washer | 1265 |
| 19 | 037-0690 | Bridgeport Series II Belt Housing (Obsolete) | Bridgeport Series II Belt Housing (Obsolete) | 037-0690 |
| 20 | 012-0090 | Bridgeport Series II Socket Head Cap Screw (Obsolete) | Bridgeport Series II Socket Head Cap Screw (Obsolete) | 012-0090 |
| 21 | 012-0091 | Bridgeport Series II Socket Head Cap Screw (Obsolete) | Bridgeport Series II Socket Head Cap Screw (Obsolete) | 012-0091 |
| 22 | 037-0691 | Bridgeport Series II Speed Changer Housing (Obsolete) | Bridgeport Series II Speed Changer Housing (Obsolete) | 037-0691 |
| 23 | 037-0692 | Bridgeport Series II Speed Changer Housing Plate (Obsolete) | Bridgeport Series II Speed Changer Housing Plate (Obsolete) | 037-0692 |
| 24 | 012-0092 | Bridgeport Series II Screw (Obsolete) | Bridgeport Series II Screw (Obsolete) | 012-0092 |
| 25 | 037-0693 | Bridgeport Series II Gear Housing (Obsolete) | Bridgeport Series II Gear Housing (Obsolete) | 037-0693 |
| 26 | 012-0057 | Bridgeport Series II Screw (Obsolete) |
Bridgeport Series II Screw (Obsolete) | 012-0057 |
