Home All Breakout Pages Lead Screw Assembly 4 HP Breakout Page

Lead Screw Assembly 4 HP – Breakout Page

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.

All diagrams are interactive and clickable. Clicking on a number will take you to the corresponding part page. Additionally, hovering over a part number will tell you the name of the part and the part number.

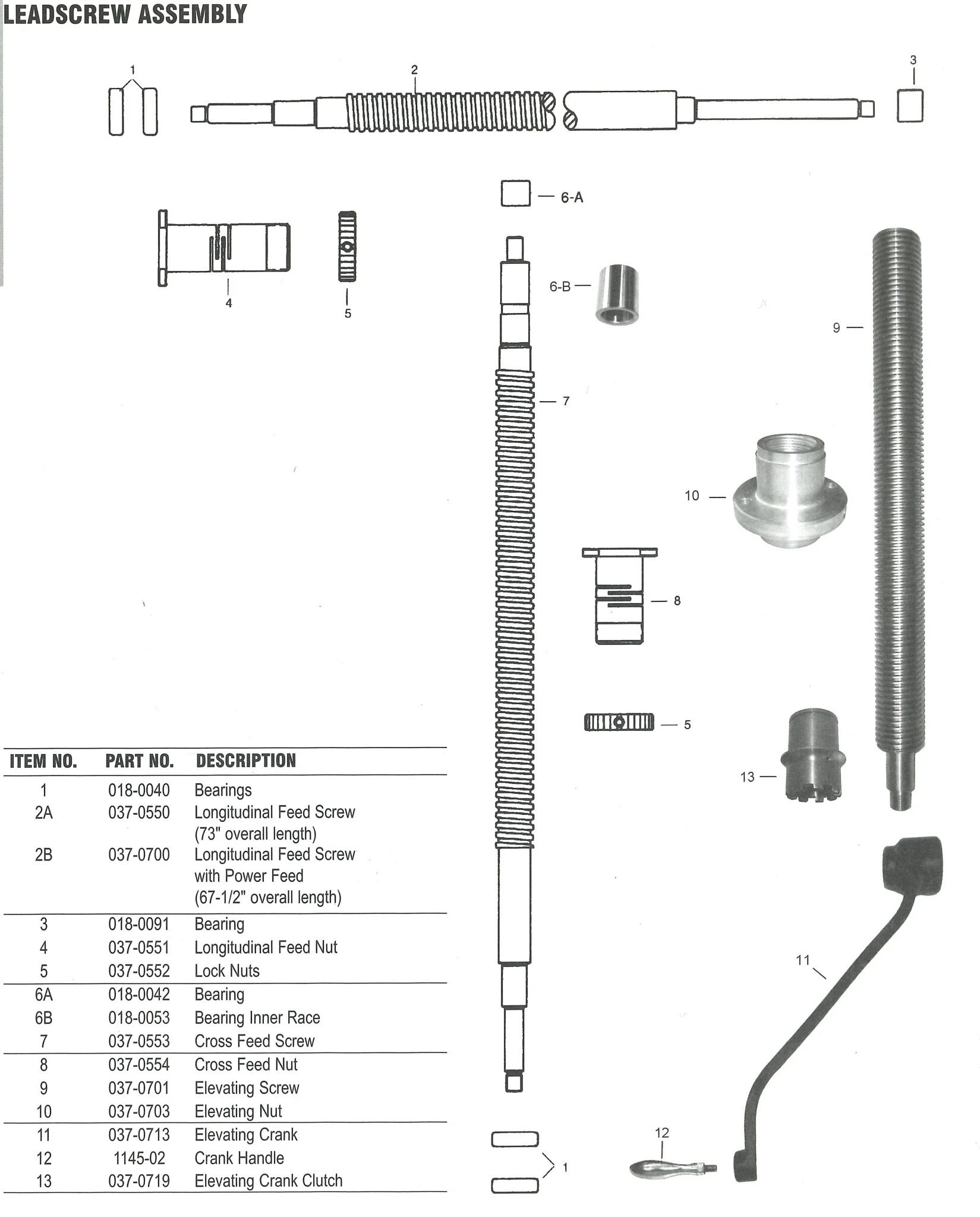

LEAD SCREW ASSEMBLY 4 HP BREAKDOWN

Lead Screw Assembly 4 HP Breakdown

Lead Screw Assembly 4 HP Breakdown
018-0040 – Bearing Set 037-9997 – Longitudinal Feed Screw 018-0091 – Bearing 037-0551 – Longitudinal Feed Nut 037-0552 – Lock Nut 018-0042 – Bearing 037-0553 – Cross Feed Screw 037-0554 – Cross Feed Nut 037-0701 – Elevating Screw 037-0703 – Elevating Nut 037-0713 – Elevating Crank 037-0719 – Elevating Crank Clutch 018-0040 – Bearing Set 037-0552 – Lock Nut Bearing Inner Race | 018-0053 018-0040 – Bearing Set 018-0091 – Bearing 037-0551 – Longitudinal Feed Nut 037-0552 – Lock Nut 018-0042 – Bearing Bearing Inner Race | 018-0053 037-0553 – Cross Feed Screw 037-0554 – Cross Feed Nut Elevating Screw | 037-0701 Elevating Nut | 037-0703 Elevating Crank | 037-0713 Elevating Crank Handle | 1145-02 037-9997 - Long. Feed Screw 037-9997 - Long Feed Screw 1145-02 - Elevating Crank Handle 037-0719 – Elevating Crank Clutch

Elevating Screw | 037-0701

Please Call for Pricing and Availablity

NOTE: ALL PRICES AND AVAILABILITY ON SERIES II PARTS ARE SUBJECT TO CHANGE WITHOUT NOTICE & SAID CHANGES MAY NOT BE REFLECTED IN THE PRICES LISTED BELOW. CALL 1-800-285-5271 FOR CURRENT PRICE & AVAILABILITY. WE HAVE THE RIGHT TO CANCEL ANY ORDERS NOT REFLECTING CURRENT PRICE OR AVAILABILITY.

Parts Breakdown

Number Part Number Part Name Part Link
1 018-0040 Bridgeport Series II Bearing Set Bridgeport Series II Bearing Set | 018-0040
2 037-9997 Bridgeport Series II Longitudinal Feed Screw Bridgeport Series II Longitudinal Feed Screw | 037-9997
3 018-0091 Bridgeport Series II Bearing Bridgeport Series II Bearing | 018-0091
4 037-0551 Bridgeport Series II Longitudinal Feed Nut Bridgeport Series II Longitudinal Feed Nut | 037-0551
5 037-0552 Bridgeport Series II Lock Nut (Obsolete) Bridgeport Series II Lock Nut (Obsolete) | 037-0552
6-A 018-0042 Bridgeport Series II Bearing Bridgeport Series II Bearing | 018-0042
6-B 018-0053 Bridgeport Series II Bearing Inner Race (Obsolete) Bridgeport Series II Bearing Inner Race (Obsolete) | 018-0053
7 037-0553 Bridgeport Series II Cross Feed Screw Bridgeport Series II Cross Feed Screw | 037-0553
8 037-0554 Bridgeport Series II Cross Feed Nut Bridgeport Series II Cross Feed Nut | 037-0554
9 037-0701 Bridgeport Series II Elevating Screw (Obsolete) Bridgeport Series II Elevating Screw (Obsolete) | 037-0701
10 037-0703 Bridgeport Series II Elevating Nut (Obsolete) Bridgeport Series II Elevating Nut (Obsolete) | 037-0703
11 037-0713 Bridgeport Series II Elevating Crank (Obsolete) Bridgeport Series II Elevating Crank (Obsolete) | 037-0713
12 1145-02 Bridgeport Elevating Crank Handle Bridgeport Elevating Crank Handle | 1145-02
