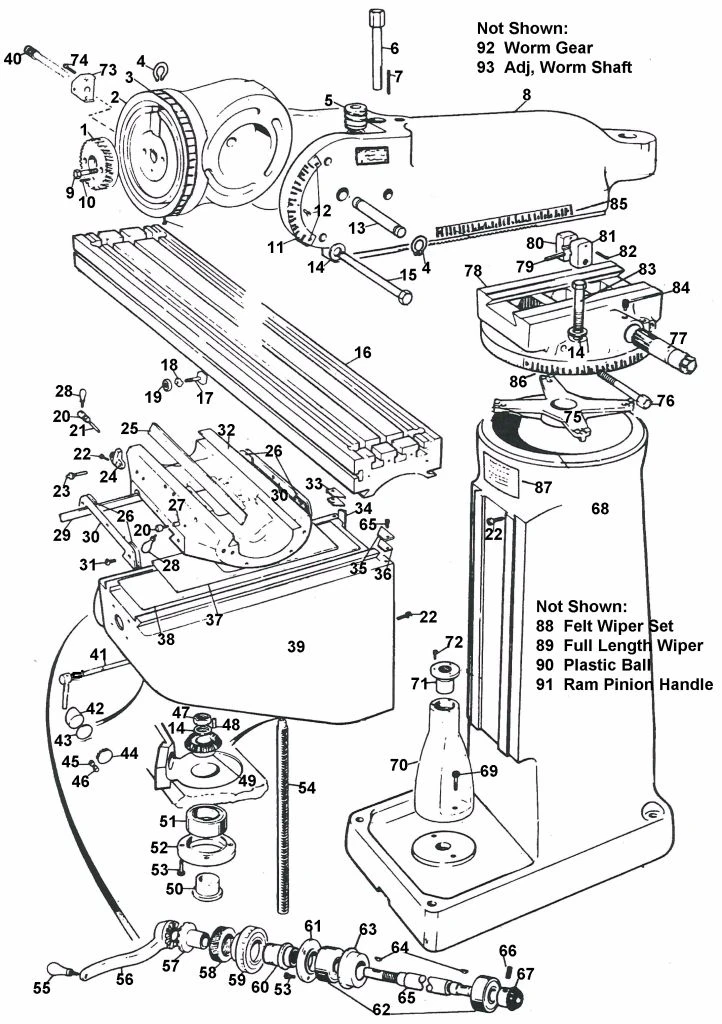

Hover over the number on the diagram to find the part number. Click on a number to be directed to the part product page.
| Number | Part Number | Part Name | Part Link |
|---|---|---|---|
| 1 | 1186 | Bridgeport Quill Housing Adjusting Gear | Bridgeport Quill Housing Adjusting Gear | 1186 |
| 2 | 1187 | Bridgeport Ram Adapter | Bridgeport Ram Adapter | 1187 |
| 3 | 1187-A | Bridgeport 90 Degree Scale (Ram Adapter) | Bridgeport 90 Degree Scale (Ram Adapter) | 1187-A |
| 4 | 1188 | Bridgeport Snap Ring | Bridgeport Snap Ring | 1188 |
| 5 | 1190 | Bridgeport Vertical Adjusting Worm Gear | Bridgeport Vertical Adjusting Worm Gear | 1190 |
| 6 | 1192 | Bridgeport Vertical Adjusting Worm Shaft | Bridgeport Vertical Adjusting Worm Shaft | 1192 |
| 7 | 1268-01 | Bridgeport Worm Key | Bridgeport Worm Key | 1268-01 |
| 8 | 1194 | Bridgeport Ram | Bridgeport Ram | 1194 |
| 9 | 1195 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1195 |
| 10 | 1196 | Bridgeport Roll Dowell Pin | Bridgeport Roll Dowell Pin | 1196 |
| 11 | 1197 | Bridgeport Angle Plate | Bridgeport Angle Plate | 1197 |
| 12 | 1198 | Bridgeport Rivet Drive Screw | Bridgeport Rivet Drive Screw | 1198 |
| 13 | 1199 | Bridgeport Adapter Pivot Pin with Locknut | Bridgeport Adapter Pivot Pin with Locknut | 1199 |
| 14 | 1200 | Bridgeport Washer | Bridgeport T – Bolt Assembly | 1431 |
| 15 | 1201 | Bridgeport Adapter Locking Bolt | Bridgeport Adapter Locking Bolt | 1201 |
| 16 | 1202 | Bridgeport Longitudinal Table | Bridgeport Longitudinal Table | 1202 |
| 17 | 1203 | Bridgeport Stop Piece T-Bolt | Bridgeport Stop Piece T-Bolt | 1203 |
| 18 | 1204 | Bridgeport Table Lock Piece | Bridgeport Table Lock Piece | 1204 |
| 19 | 1205 | Bridgeport Hex Nut | Bridgeport Hex Nut | 1205 |
| 20 | 1206 | Bridgeport Lock Bolt | Bridgeport Adjustable Table Lock Handle | 1206-A |
| 21 | 1207 | Bridgeport Saddle Lock Plunger | Bridgeport Saddle Lock Plunger | 1207 |
| 22 | 1148 | Bridgeport Stop Screw | Sharp Backlash Tool | #22 |
| 23 | 1106 | Bridgeport Gib Adjusting Screw | Bridgeport Stop Screw | 1148 |
| 24 | 1209 | Bridgeport Table Stop Bracket | Bridgeport Table Stop Bracket | 1209 |
| 25 | 1156 | Bridgeport Saddle/Table Gib | Bridgeport Saddle/Table Gib | 1156 |
| 26 | 1601 | Bridgeport Way Wiper Kit | Bridgeport Way Wiper Kit | 1601 |
| 27 | 1149 | Bridgeport Table Lock Plunger | Bridgeport Table Lock Plunger | 1149 |
| 28 | 1122 | Bridgeport Lock Bolt Handle | Bridgeport Lock Bolt Handle | 1122 |
| 29 | 1157 | Bridgeport Saddle/Knee Gib | Bridgeport Saddle/Knee Gib | 1157 |
| 30 | 1153 | Bridgeport Saddle/Knee Wiper Plate | Bridgeport Saddle/Knee Wiper Plate | 1153 |
| 31 | 1152 | Bridgeport Flat Head Screw | Bridgeport Flat Head Screw | 1152 |
| 32 | 1211 | Bridgeport Saddle | Bridgeport Saddle | 1211 |
| 33 | 1212 | Bridgeport Left Hand Column Wiper Holder | Bridgeport Left Hand Column Wiper Holder | 1212 |
| 34 | 1158 | Bridgeport Knee/Column Gib | Bridgeport Knee/Column Gib | 1158 |
| 35 | 1214 | Bridgeport Right Hand Column Wiper Holder | Bridgeport Right Hand Column Wiper Holder | 1214 |
| 36 | 1163 | Bridgeport Knee Wiper | Bridgeport Knee Wiper | 1163 |
| 37 | 1215 | Bridgeport Knee Chip Guard, Upper | Bridgeport Knee Chip Guard, Upper | 1215 |
| 38 | 1216 | Bridgeport Knee Chip Guard, Lower | Bridgeport Knee Chip Guard, Lower | 1216 |
| 39 | 1217 | Bridgeport Knee | Bridgeport Knee | 1217 |
| 40 | 1251-A | Safety Stop Pin | Safety Stop Pin | 1251-A |
| 41 | 1218 | Bridgeport Knee Lock Shaft | Bridgeport Knee Lock Shaft | 1218 |
| 42 | 1219 | Bridgeport Knee Lock Plunger | Bridgeport Knee Lock Plunger | 1219 |
| 43 | 1220 | Bridgeport Washer | Bridgeport Washer | 1220 |
| 44 | 1221 | Bridgeport Knee Binder Plug | Bridgeport Knee Binder Plug | 1221 |
| 45 | 1222 | Bridgeport Dog Point Set Screw | Bridgeport Dog Point Set Screw | 1222 |
| 46 | 1223 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1223 |
| 47 | 1166 | Bridgeport Hex Jam Nut | Bridgeport Hex Jam Nut | 1166 |
| 48 | 1224 | Bridgeport Key | Bridgeport Key | 1224 |
| 49 | 1226 |
Bridgeport Bevel Gear | Bridgeport Bevel Gear | 1226 |
| 50 | 1227-A | Bridgeport Bearing Bushing Spacer | Bridgeport Bearing Bushing Spacer | 1227-A |
| 51 | 1227 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1227 |
| 52 | 1228 | Bridgeport Bearing Retainer Ring | Bridgeport Bearing Retainer Ring | 1228 |
| 53 | 1171 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1171 |
| 54 | 1071 | Bridgeport Elevating Screw | Bridgeport Elevating Screw | 1071 |
| 55 | 1145-02 | Bridgeport Elevating Crank Handle | Bridgeport Elevating Crank Handle | 1145-02 |
| 56 | 1145-01 | Bridgeport Elevating Crank | Bridgeport Elevating Crank | 1145-01 |
| 57 | 1230 | Bridgeport Gear Shaft Clutch Insert | Bridgeport Gear Shaft Clutch Insert | 1230 |
| 58 | 1168 | Bridgeport Dial Lock Nut | Bridgeport Dial Lock Nut | 1168 |
| 59 | 1231 | Bridgeport Dial with100 Graduations | Bridgeport Dial with100 Graduations | 1231 |
| 60 | 1232 | Bridgeport Dial Holder | Bridgeport Dial Holder | 1232 |
| 61 | 1172 | Bridgeport Bearing Retainer Ring | Bridgeport Bearing Cap | 1235 |
| 62 | 1178 | Bridgeport Ball Bearing | Bridgeport Ball Bearing | 1178 |
| 63 | 1235 | Bridgeport Bearing Cap | Bridgeport Bearing Cap | 1235 |
| 64 | 1179 | Bridgeport Key | Bridgeport Key | 1179 |
| 65 | 1236 | Bridgeport Elevating Shaft | Bridgeport Elevating Shaft | 1236 |
| 66 | 1238 | Bridgeport Socket Set Screw | Bridgeport Socket Set Screw | 1238 |
| 67 | 1237 | Bridgeport Bevel Pinion | Bridgeport Bevel Pinion | 1237 |
| 68 | 1239 | Bridgeport Column | Bridgeport Column | 1239 |
| 69 | 1175 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1175 |
| 70 | 1241 | Bridgeport Pedestal | Bridgeport Pedestal | 1241 |
| 71 | 1072 | Bridgeport Elevating Nut | Bridgeport Elevating Nut | 1072 |
| 72 | 1242 | Bridgeport Button Head Cap Screw | Bridgeport Button Head Cap Screw | 1242 |
| 73 | 1250 | Bridgeport Stop Bracket | Bridgeport Stop Bracket | 1250 |
| 74 | 1502 | Bridgeport Socket Head Cap Screw | Bridgeport Socket Head Cap Screw | 1502 |
| 75 | 1243 | Bridgeport Spider | Bridgeport Spider | 1243 |
| 76 | 1129-03 | Bridgeport Ram Lock Stud | Bridgeport Ram Lock Stud | 1129-03 |
| 77 | 1244 | Bridgeport Ram Pinion | Bridgeport Ram Pinion | 1244 |
| 78 | 1246 | Bridgeport Turret | Bridgeport Turret | 1246 |
| 79 | 1129-04 | Bridgeport Ram Clamp Bar | Bridgeport Ram Clamp Bar | 1129-04 |
| 80 | 1129-01 | Bridgeport Ram Clamp, Untapped | Bridgeport Ram Clamp, Untapped | 1129-01 |
| 81 | 1129-02 | Bridgeport Ram Clamp, Tapped | Bridgeport Ram Clamp, Tapped | 1129-02 |
| 82 | 1247 | Bridgeport Split Ram | Bridgeport Split Ram | 1247 |
| 83 | 1248 | Bridgeport Locking Bolt | Bridgeport Locking Bolt for 4″ Riser Block | 1248L |
| 84 | 1249 | Bridgeport Ram Pinion Screw | Bridgeport Ram Pinion Screw | 1249 |
| 85 | 6031 | Bridgeport Ram Scale | Bridgeport Ram Scale | 6031 |
| 86 | 6032 | Bridgeport Turret Scale | Bridgeport Turret Scale | 6032 |
| 87 | 6033 | Bridgeport Warning Plate | Bridgeport Warning Plate | 6033 |
| 88 | 1601 | Bridgeport Way Wiper Kit | Bridgeport Way Wiper Kit | 1601 |
| 89 | 1602 | Bridgeport Full Length Felt Wiper | Bridgeport Full Length Felt Wiper | 1602 |
| 90 | 1245 | Bridgeport Plastic Ball | Bridgeport Plastic Ball | 1245 |
| 91 | 1159 | Bridgeport Ram Pinion Handle | Bridgeport OEM Drum Switch | 11598117 |
| Part Number | Part Name | Part Link |
|---|---|---|
| 1601 | Bridgeport Way Wiper Kit | Bridgeport Way Wiper Kit | 1601 |
| 6034 | Bridgeport Ram Adapter Warning Plate | Bridgeport Ram Adapter Warning Plate | 6034 |
| 6050 | Bridgeport Name Plate for Ram | Bridgeport 90 Degree Scale (Ram Adapter) | 1187-A |
| 1096 | Bridgeport Worm Gear | Bridgeport Worm Gear | 1096 |
| 1097 | Bridgeport Adjusting Worm Shaft with Key | Bridgeport Adjusting Worm Shaft with Key | 1097 |
| 12PB20 | Push N Lube Pump for Zerk Base | Push N Lube Pump for Zerk Base | 12PB20 |
| 1095K65 | Zerk Fittings for Bridgeport Saddle and Knee | Zerk Fittings for Bridgeport Saddle and Knee | 1095K65 |
| RBK-XYN | Rebuild Kit for Bridgeport X and Y Axis Nut Assembly | Rebuild Kit for Bridgeport X and Y Axis Nut Assembly | RBK-XYN |
| 1701 | Bridgeport 4″ Riser Block | Bridgeport 4″ Riser Block | 1701 |
| 1702 | Bridgeport 6″ Riser Block | Bridgeport 6″ Riser Block | 1702 |
| 1248L | Bridgeport Locking Bolt for 4″ Riser Block | Bridgeport Locking Bolt for 4″ Riser Block | 1248L |
| 1248XL | Bridgeport Locking Bolt for 6″ Riser Block | Bridgeport Locking Bolt for 6″ Riser Block | 1248XL |
| BRM-2J | Guide to Renovating the Bridgeport “2J” Head Machine | Guide to Renovating the Bridgeport “2J” Head Machine | BRM-2J |
| BRM-J | Guide to Renovating the Bridgeport “J” Head Machine | Guide to Renovating the Bridgeport “J” Head Machine | BRM-J |
| BRM-1 | Bridgeport Series I Operators Manual | Bridgeport Series I Operators Manual | BRM-1 |
| Way Oil | Way Oil | Way Oil |
| 1145-03 | Bridgeport Elevating Knee Crank Assembly | Bridgeport Elevating Knee Crank Assembly | 1145-03 |
| JF7077331 | Drill Powered Knee Crank | Drill Powered Knee Crank | JF7077331 |
| WSV64 | Precision Brand Steel Shim Stock (Roll) | Precision Brand Steel Shim Stock (Roll) | WSV64 |
| Precision Brand Shim Stock (Sheets) | Precision Brand Shim Stock (Sheets) | Precision Brand Shim Stock (Sheets) |
| BPLVL | Bridgeport Milling Machine Leveling Feet | Bridgeport Milling Machine Leveling Feet | BPLVL |
| 1776 | American Flag Sticker | American Flag Sticker | 1776 |
| 1206-A | Bridgeport Adjustable Table Lock Handle | Bridgeport Adjustable Table Lock Handle | 1206-A |
