Edge Technology Touch Off Gage | 52-000
$106.24
Description

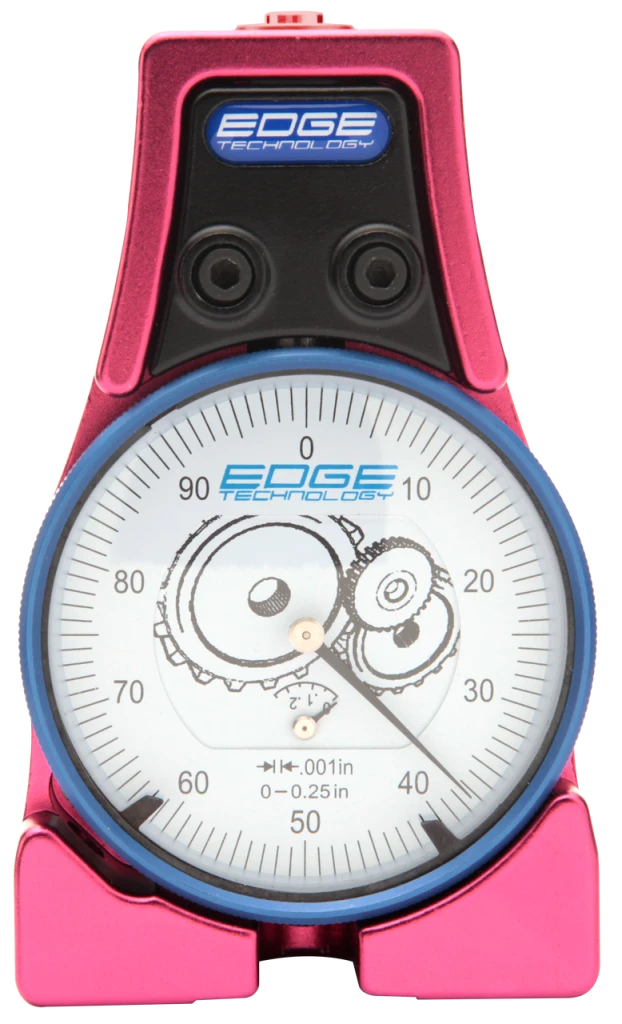

Edge Technology Touch Off Gage
It uses a smaller 0.250″ diameter aluminum contact face.
• Accurately establishes tool length offsets for CNC milling machines.
• The contact face is lightly spring-loaded to protect against overrun.
• Contact face diameter is 0.250″.
• The rectangular base and recessed indicator face allow it to fit between vise jaws on a pair of parallel bars.
• Offset height 4.000 in (101.6mm).
• Large 2.2″ easy-to-read indicator face.
• Easy calibration check using 1-2-3 blocks.
• Gage graduations 0.001″.
• Gage repeatability 0.0002″.
• Body and contact face are made from red anodized 6061-T6 aluminum.
• Padded case and manual included.
SKU: 52-000
Additional information
52-000
