Pro-Series 6″ Angle-Tight Positive-Lock Milling Vise

The Pro-Series 6″ milling vise is designed to provide secure, reliable workholding for precision milling, drilling, shaping, and general machining operations. Featuring an Angle-Tight Positive-Lock clamping mechanism and precision-ground surfaces, this heavy-duty milling vise is suitable for professional machine shops, maintenance departments, fabrication facilities, and toolrooms.

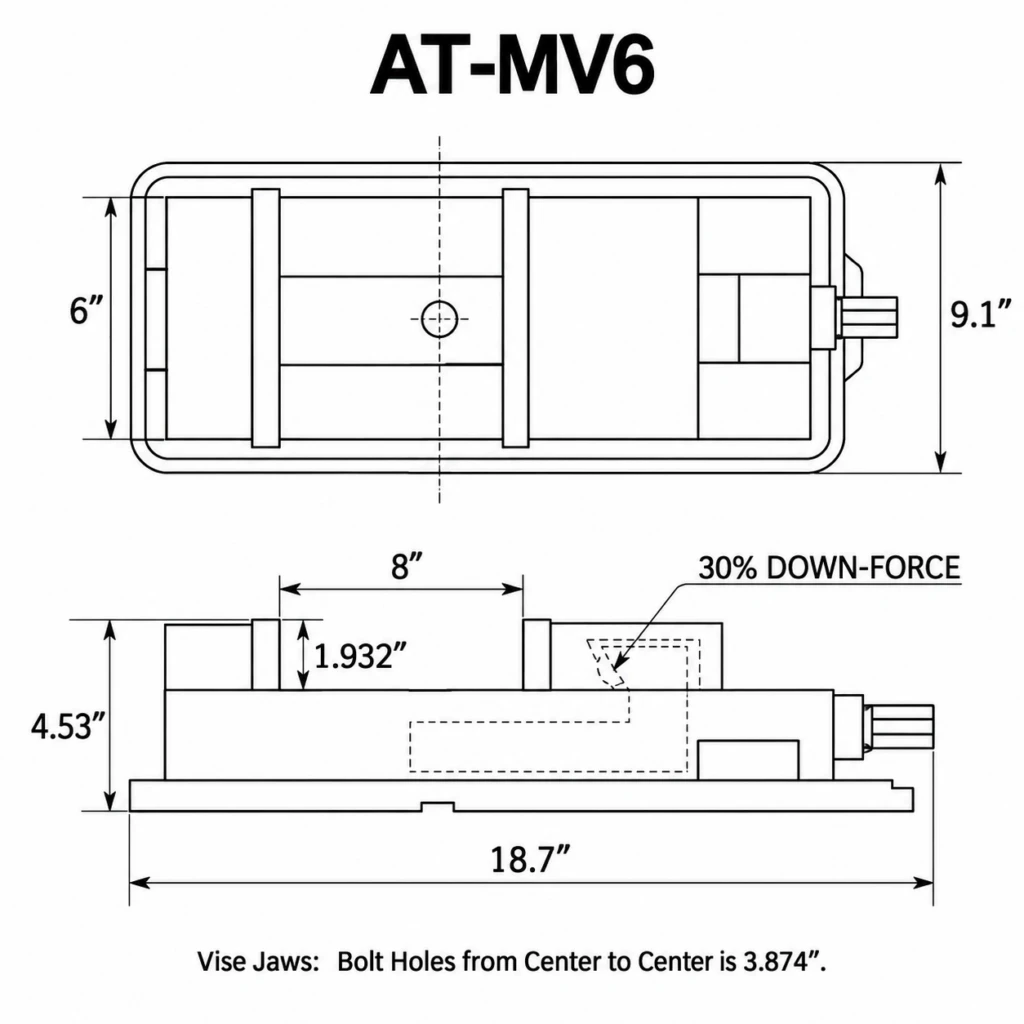

Its 6-inch jaw width provides a substantial clamping surface for holding a variety of workpieces, while the 7.87-inch maximum jaw opening accommodates larger components and machining setups.

Angle-Tight Positive-Lock Clamping System

The vise incorporates an Angle-Tight Positive-Lock mechanism designed to minimize upward movement of the movable jaw as clamping pressure is applied.

Conventional vise designs can allow the movable jaw to lift slightly during tightening, potentially affecting workpiece positioning. The Positive-Lock design helps maintain downward clamping force, improving workpiece stability during machining.

This makes the vise particularly useful for milling operations where secure workholding and consistent positioning are important.

Precision-Ground Construction

The Pro-Series milling vise features precision-ground surfaces to support consistent positioning and reliable workholding.

Its heavy-duty construction provides a stable clamping platform for a variety of metalworking applications, including milling, drilling, shaping, and general machine shop operations.

Key Features and Benefits

• 6″ Jaw Width: Provides a wide clamping surface for a variety of metalworking applications.
• 7.87″ Maximum Jaw Opening: Accommodates larger workpieces and machining setups.
• Angle-Tight Positive-Lock Design: Helps prevent upward movement of the movable jaw during tightening.
• Precision-Ground Surfaces: Support consistent workpiece positioning and alignment.
• Heavy-Duty Construction: Designed for machine shop and industrial workholding applications.
• Interchangeable Jaws: Angle-Tight Positive-Lock style jaws are interchangeable with compatible American Standard vise jaws.
• Low-Profile Design: Provides a stable workholding arrangement on milling machine tables.
• Mounting Hardware Included: Supplied with hardware for machine mounting.
• Optional Swivel Base: A compatible 360° swivel base is available separately for applications requiring angular positioning.
• Versatile Applications: Suitable for milling machines, shaping machines, drilling machines, and general machine shop setups.

Precision 6 Inch Milling Vise for Machine Shops

This 6 inch milling vise provides the clamping capacity and secure workholding needed for milling, drilling, shaping, and general machining operations.

The 6 inch milling vise is well suited for holding steel, aluminum, cast iron, and other machinable workpieces during appropriate cutting and drilling operations.

Optional Accessories

Optional Swivel Base: The VS-MV6 360° swivel base is available separately for the AT-MV6 6″ Angle-Tight Positive-Lock Milling Vise, allowing adjustable angular positioning for milling and drilling operations.

The swivel base is not included with the standard vise.
