This method uses two dial indicators that take shaft-to-shaft readings. Both the offset and angularity are combined in the alignment calculation. This method determines the misalignment by taking two rim readings at different points along the shaft and is fast and easy to use. Make sure couplings are free from backlash if having to read from outside the diameter of couplings. Indicator stems must be perpendicular to shafts. Looseness will result in inaccurate readings. Simply set indicators to “0” on the dials before 180° rotation.
Starrett indicators and sleeves included in SLS-3 KIT

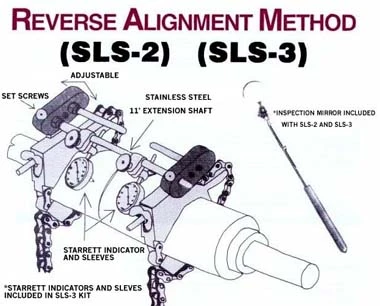

Reverse Alignment Kit
$825.00 – $1,450.00
Starrett indicators and sleeves included in SLS-3 KIT
Description
This method uses two dial indicators that take shaft-to-shaft readings. Both the offset and angularity are combined in the alignment calculation. This method determines the misalignment by taking two rim readings at different points along the shaft and is fast and easy to use. Make sure couplings are free from backlash if having to read from outside the diameter of couplings. Indicator stems must be perpendicular to shafts. Looseness will result in inaccurate readings. Simply set indicators to “0” on the dials before 180° rotation.
Starrett indicators and sleeves included in SLS-3 KIT
SKU: SLS-2 | Reverse Alignment Kit – 2 Indicator Clamps
SKU: SLS-3 | Complete Reverse Alignment Kit – 2 Indicator Clamps + Starrett indicators and sleeves
Additional information
SLS-2 – 2 Indicator Clamps, SLS-3 2 Indicator Clamps + Starrett indicators and sleeves
