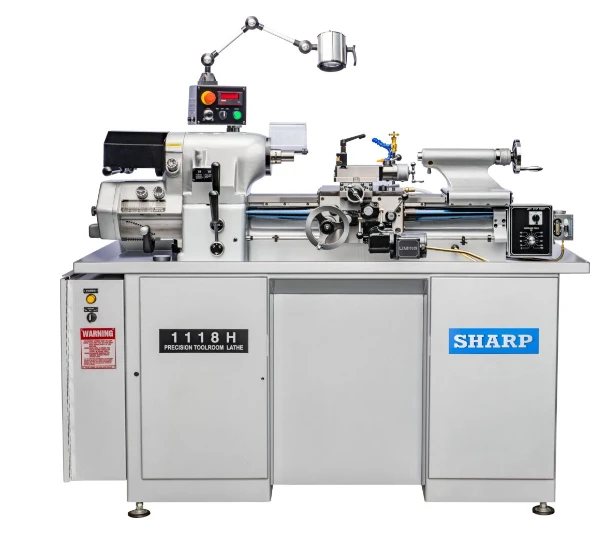

Sharp 1118H High Precision Toolroom Lathe | 1.06″ Bore | 5HP


Please call 1-800-285-5271, email [email protected], or click on the “Request Quote” button below for a PDF quote with accessory pricing.

*Pricing is subject to change at any time.

Machine Quote Request
Sharp 1118H Lathe Brochure

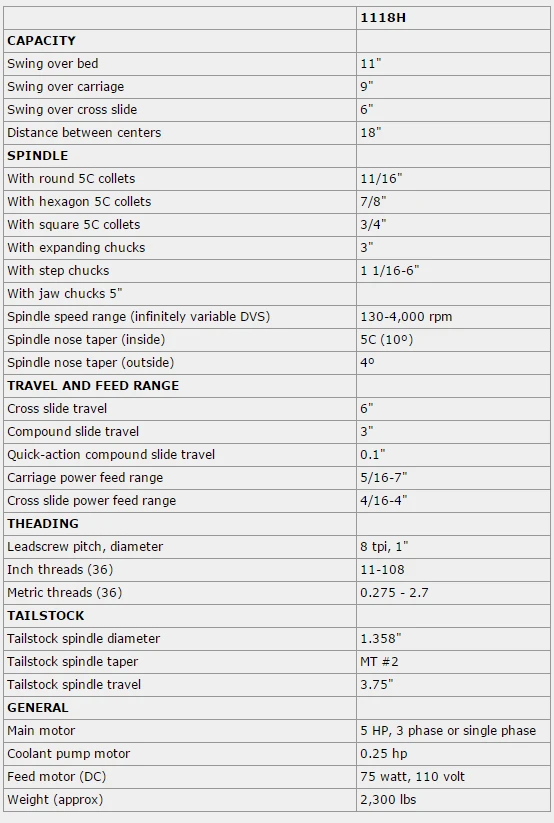

The Sharp 1118H Toolroom Lathe is built with alloy steel bed ways for achieving high precision machining. This Toolroom lathe is equipped with 5C collet closure, ideal for machining small precision parts, 11” x 18” capacity, 5 HP motor, digital variable speed 50 millionth TIR accuracy, 14.5” x 18” capacity, Fagor control with conversational programming, electronic handwheel (MPG), 5 HP motor and digital variable speed. Click second picture for specs.

  • Digital Variable Speed (DVS) – Super quiet and vibration free.
  • High-speed spindle (infinitely variable 130-4,000 rpm), accuracy within 50 millionths TIR.
    Hardened and ground spindle.
    Precision alloy steel bed ways.
  • Preset DVS hi-low ratio.
    Independent electric feed control on carriage and cross slide using high quality DC motor by Bodine. It also allows directional and precise feed rate adjustment.
  • Quick-change inch/metric gearbox with 36 changes.
    Double angular contact bearings support spindle.
    Quick-action compound slide for threading. Inch/metric dials.
  • Adjustable thread length control stops with fine adjustment.
    Hardened and ground leadscrews.
    Inch / metric dual dial.

Sku: 1118H
