Sharp TMV Knee Mill with 2 Axes (X,Y). Acu-Rite Millpwr G2 CNC Control with 3 Axes DRO.
This is a simple, easy to use 2 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming . The CNC system is built on the top quality SHARP vertical mills Model TMV and TMV-1 frame.
- (TMV-MP2) 10 x 54” table, 15.5 x 31x 5” travel, vari speed 3 HP, R-8 spindle
- (TMV-DVS-MP2) 10 x 54” table, 15.5 x 31x 5” travel, Digital Vari Speed 3 HP, R-8 spindle

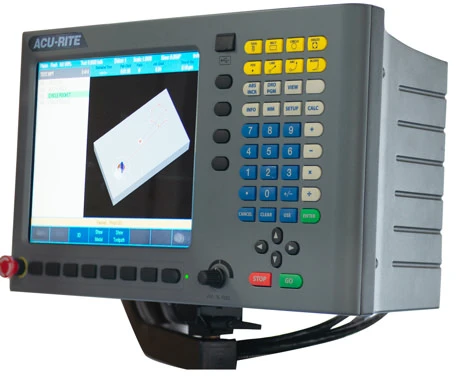

- AcuRite Millpwr G2 CNC 2 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 2 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)
Sku:
